Pharmaceutical Automatic Capsule Filling Machine For Pill Powder Particle

Name: Pharmaceutical Automatic Capsule Filling Machine For Pill Powder Particle
Brand: LEIYUE
SKU: NJP-200C
Price: 12500 USD
Availability: InStock
Rating: 4.8 (136 reviews)

Product Details

Place of Origin: Shenzhen China

Brand Name: LEIYUE

Certification: CE

Model Number: NJP-200C

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: USD12500/unit

Packaging Details: Wooden box

Delivery Time: 25-30 work days

Payment Terms: T/T

Supply Ability: 10 units/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Pharmaceutical Automatic Capsule Filling Machine, Powder Particle Automatic Capsule Filling Machine, Pharmaceutical pill filling machine


Output:	12000Capsules/hour	Weight:	600Kg
Machine Dimensions:	700×800×1700mm	Power Supply:	380/220V 50Hz
Motor Power:	3kw	No.of Segment Bores:	2
Vacuum:	20m3/h-0.04-0.08Mpa	Dust:	17.6Kpa 180m3/h
Noise:	<80DB(A)	Making Rate:	Empty Capsule99.9%Full Capsule Over99.5%
Suitable For Capsule:	00,0,1,2,3,4,5#	Filling Error:	±3%-±4%

Output:	12000Capsules/hour
Weight:	600Kg
Machine Dimensions:	700×800×1700mm
Power Supply:	380/220V 50Hz
Motor Power:	3kw
No.of Segment Bores:	2
Vacuum:	20m3/h-0.04-0.08Mpa
Dust:	17.6Kpa 180m3/h
Noise:	<80DB(A)
Making Rate:	Empty Capsule99.9%Full Capsule Over99.5%
Suitable For Capsule:	00,0,1,2,3,4,5#
Filling Error:	±3%-±4%

Product Description

Auto Capsule Filling Machine is used to fill powder in the form of slug in hard gelatin capsules.
These are high speed, a high performance machine that incorporates latest international design and is built with precision using most appropriate material and up to date manufacturing systems. Different models are available for various output requirements. It is designed to cater various formulations with option to fill powder, granules and pellets.

Its automatic filling demands very high accuracy besides high productivity, ease of operation
and minimum maintenance. This machine has been specifically designed to meet all these
requirements.

1. Tamping Mechanism enables capsules to be filled with a weight variation of 3 %.
2.Quick changeover for a variety of capsule sizes with minimal follow-up adjustments and maintenance requirements.

3. closed system protect your product from contaminants, and allow a dust-free production
environment for better health and easier cleaning
4.Adjustable gap between dosing disk and tamping plate ensures minimum spillage of powder.
5.Unit goes with touch panel, control by PLC.
6.All contact parts of medical powders are made from a corrosion resistant stainless steel 316.
7.Automatic vacuum removal of the air in the dosing tube to give more accurate weight of the filled capsules

8. click-moving control system, make and easier operation and clearness.
9. Safety System
Machine stops automatically in the event of following problems through safety interlock system.
· No capsules
· No powder
· Door in open condition

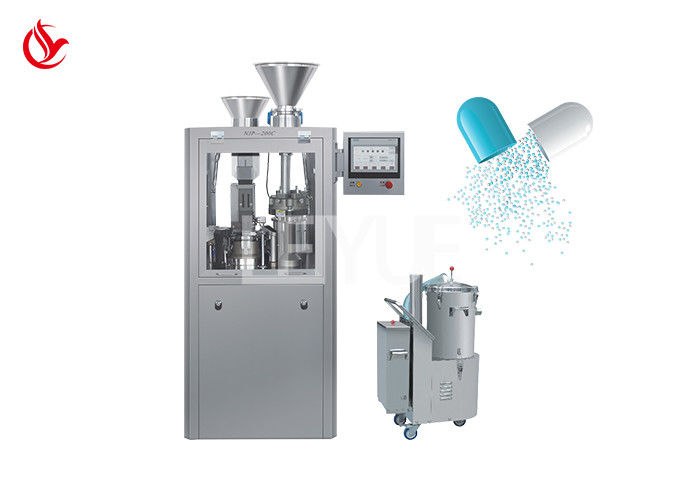

Pharmaceutical Automatic Capsule Filling Machine For Pill Powder Particle 0
