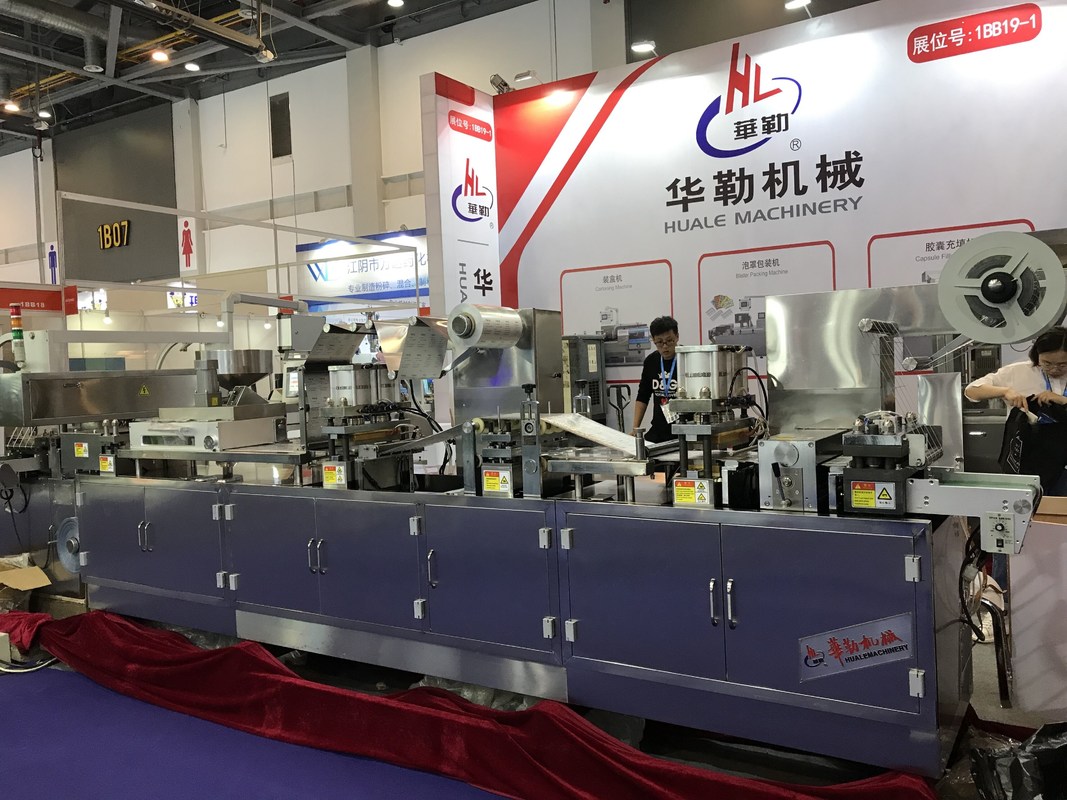

Fully Automatic High Frequency Sealing Bouble Blister Packing Machine
This machine is a kind of environmental blister packing machine designed and produced by our company. It comes with integrating mechanism, electricity and pneumatic system under PLC control and touch screen operation.
The machine working process include automatic preheating, compressed air blow forming, feeding, detection system, PRC system, first sealing station, batch number embossing, tropical foil forming, second sealing station, perforation station, servo pulling system, cutting station, rejection system and wasted material rewinding station etc.
The machine suitable for blister packing with Alu-Plastic, Alu-Alu and Alu-Plastic-Alu.
1). Adopts the elements of 250 blister packing machine, machine tool track type machine
basis, ease of adjusting, and the mould position can be adjusted and accurately
2). It adopt body division machanism to avoid inconvenience of transfer due to the length
of the bofy 1.8 m by mounting up the forming and sealinassmbly.
3) This machine use servo double drive strucyure, it can avoid synchronized bubble break
cause by sudden machine stop.It also can conveniently realize photocell register function,
and servo air clip clip drive function.At the meanwhile, it also fastens the adjustment caused during mould change.Tith this strecture, you can also set the dive distance on human-machine interface.
Stainless Steel 304 (medicinal contact can be selected SS3016)
(Standard size 57*80)
Adjustable pulling length
Blister Plate Size
Design According To Customers’ Requirements
Max Forming area and depth
Power supply(Three phase)
380V/220V 50HZ 11.5KW
380V/220V 50HZ 4.5KW
380V/220V 50HZ 8KW
Packaging Material (mm)
Alu Alu Foil
Blister Foil: 260*(0.02-0.15)*(Φ250)
0.6-0.8Mpa ≥0.5m3/min (self-prepared)
(Recycle water or circulating water consumption) 60-100 L/h
