Widely Used Automatic Cartoning Machine for large box ( L220mmW100mmH70mm)

Basic Information

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DXH-200W

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	50 working days after received your payment.
Supply Ability:	10 Set per month

Get Best Price Contact Now

Product Name:	PLC CONTROL BLISTER CARTONING MACHINE	Output:	Max.200 Boxes/min
Box Dimension Range:	(55-200)(20-80)(14-45)mm	Material Consist:	Stainless Steel 304
Capacity Of Air Compressor:	≥0.5Mpa	Power Supply:	380V/220V 50HZ 0.75KW
High Light:	Automatic Carton Packing Machine , Carton Sealer Machine

Medicine plates/ Bags /Cards filling and sealing packing machine/ automatic cartoning machine

Specifications

Machine Model		DXH-200W
Max encasing speed		200box/min
Carton	Quality Requirement	250-350g/m2
	Dimension Range (L×W×H)	(55-220) ×(20-100) ×(14-70)mm
leaflet	Quality Requirement	50-70g/m2
	Folded Leaflet Specification	(80-240)X(90-190)mm
	Folding Range	1-4 fold
Air Consumption		>0.3m3/min 0.6mpa
Motor Power		1.5kw 380V 50HZ
Machine Dimension (L×W×H)		4300x1440x1600mm
Machine Net Weight		About 1500kg

Applications

The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.

Performance and characteristics

The machine works continuously with mechanical pushing objects into carton with smooth and reliable working situation.
The object pusher comes with alarming system while the objects are not at the right position, it ensures the good carton quality and safety in operation.

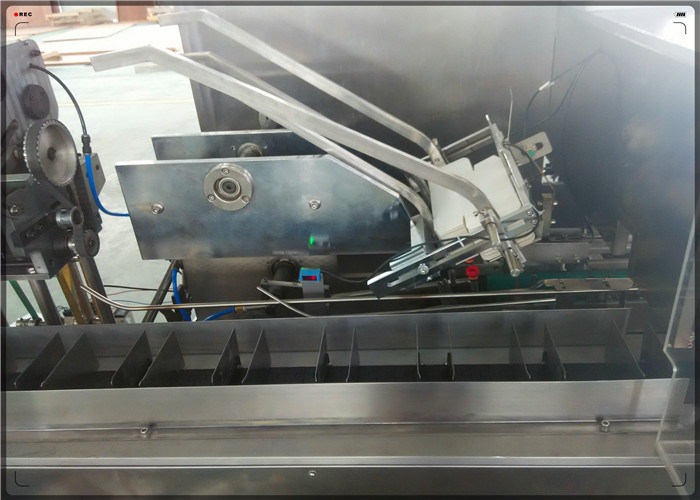

Continuous carton opening system with pulling style opening station makes machine working more stable and smoothly.
The machine adopts servo feeding system which makes the feeding more smoothly and stable.
The machine has the vacuum protection stopping system and automatic testing and stopping system for cover opening, to ensure human safety when operating.
It is easy and convenient to change and adjust the product size with hand wheel.
The speed is controlled by inverter while the whole system is controlled by PLC and operating by touch screen for easier and simpler production, all machine running status are displayed by double language.
The machine has the function of overloading protecting and failure diagnosis indication, and production of automatic shutdown system failure.
