HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DZL SERIES |
| Minimum Order Quantity: | 1 Set |
| Price: | 1-100,000 usd/set |
| Packaging Details: | Wooden Box. |
| Delivery Time: | 45 working days after received your payment |
| Supply Ability: | 5 Set per month |
| Name: | Cosmetic Industry Packaging Line | Output: | 10-25 Bags/min |
|---|---|---|---|
| Used: | Carton Package | Power: | 380/220V 50HZ |
| Control System: | PLC Control System With Touch Screen | Main Motor Driving: | Servo Motor Driving |
| Machine Size: | According To Customer's Workshop Design | ||
| High Light: | Blister Forming Machine,Tablet Packaging Machine |
||
Name: Touch Screen Cosmetic Blister Line Cartoning And 3D Film Over Wrapping
This fully automatic outside packing line is consist of carton box packing machine and transparent film over wrapping machine.It have advantages of high efficiency, reduce labor intensity and human labor cost.This production line is famous for high automatic degree, stable working, safe and reliable performance, with auto-reject function etc. It is the ideal packing production line used in the industries of pharmaceutical, food, cosmetic etc.
Performance and characteristic
Reasonable structure, advanced technology
Multi-function digital display frequency conversion step-less speed regulation, PLC programming control technology
Main transmission system gets overloading protecting device.
Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
Detection and Rejection of cartons which gets no object fed or leaflet fed.
Rotary feeder with speed adjusting motor for feeding different sizes of object.
This production line gets stable performance, easy to change different sizes of products.

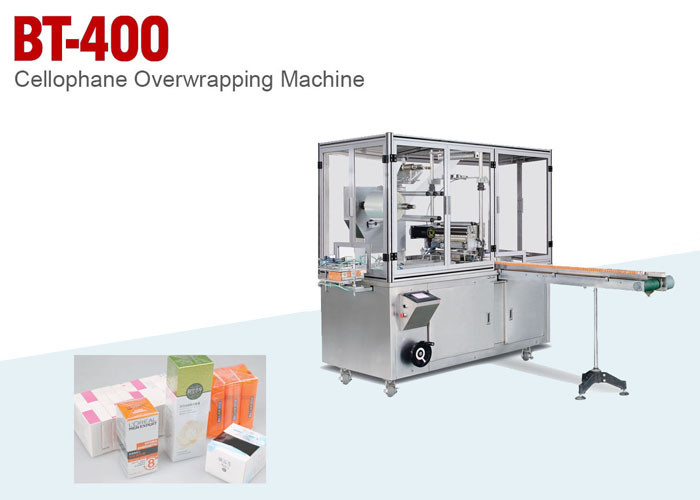

Main technical parameters
| Model | BT-400 |
| Productivity | 10-25 bags/min |
| Packing size | L+H+(5-10)≦400mm |
| Power supply | 220v 50HZ |
| Motor power | 0.75kw |
| Electric heating power | 5kw |
| Dimensions | 2200*935*1960mm |
| Conveyor belt | 1365*150*910 |
| Weight | 1000kg |
| Application | Single box or boxes( in Spear) |
| Model | DXH-120W | DXH-200W |
| Capacity | 50-100carton/min | 80-200carton/min |
| Max Carton Size | 120×70×30mm | 200×120×70mm |
| Min Carton Size | 70×30×10mm | 50×20×12mm |
| Carton Quality | 250-300g/m³ | 250-300g/m³ |
| Max leaflet size(L*W) | 260×190mm | 260×190mm |
| Min leaflet size(L*W) | 100×100mm | 100×100mm |
| Leaflet Quality | 55-659m³ | 55-659m³ |
| Air consumption | 20m³/h press0.5-0.7mpa | 20m³/h press0.5-0.7mpa |
| Power | 0.75kw | 2.2kw |
| Voltage | 380v 50Hz | 380v 50Hz |
| Dimension(L*H*W) | 950×1050×1500mm | 4380×1460×1800mm |
| Weight | 750kg | 2500kg |
