| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/ISO9001 |
| Model Number: | NJP-200C |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | packed with PE film and fixed in export wooden case |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 10 Sets per month |
| Features: | Max.12000 Capsules/h | Product Name: | Small Automatic Hard Capsule Filling Machine |
|---|---|---|---|
| Controller: | PLC Programming Control System | Alarm For Capsule Lacking: | Yes |
| Freely Supplied Items: | Dust Collector | Capsule Filling Rate: | Above 99% |
| High Light: | Capsule Filling Equipment,Capsule Filler Machine |
||

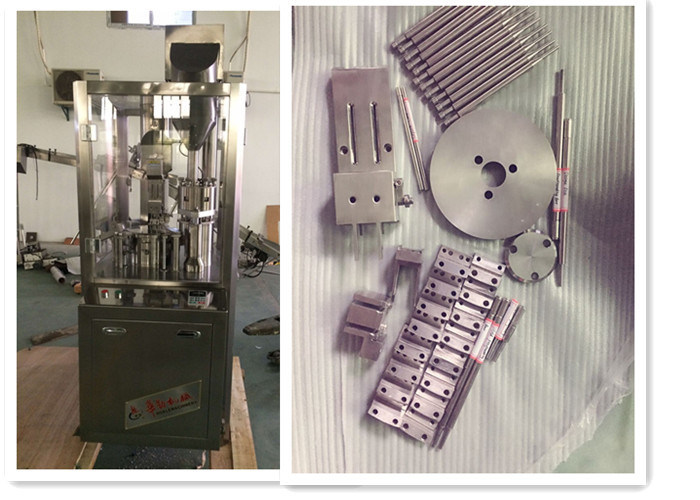

Speedy Mini Auto Pharmaceutical Capsule Filling Machine(NJP-200C) For Powder
This fully automatic capsule filling machine is suitable for capsule size 00#-4# which applied for medium & small pharmaceutical factory, hospital preparation lab, etc.
Machinery Characteristic
1. Working steady, safe and reliable enough.
2. Capsule qualified rate is more than 99% with the precise dosage.
3. Timing frequency-conversion, programmable controlled.
4. New closed structure, reached GMP standard.
Main Features
Small volume, low energy consumption, fast mould change, convenient operating, easy cleaning.
Shelter are fixed around the dose pan which can recycle the power ,reduce the dust on the working bench.
The turning-around parts are in full closure, have excellent lubricating conditions.
Adopt the man -machine interface, including PLC programming controller, appear the capacity of per minutes, total output, dynamic empty capsules and medicine powder condition, alarm for capsule lacking, and automatically stop for lacking of medicine power, breakdown diagnosing display.
Technical parameters
| Machine Model | NJP- 200C |
| Control | PLC stepless frequency inverter |
| Operation | Control by touch screen |
| Filling dosage | Powder ,Pellets |
| Capsule size | 00#---4# capsule exculde 3# |
| Max Output | 12000 Capsules/hour |
| Power | 380V/50Hz 3KW can customized as per customer's requirement |
| Noise index | <80dba |
| Overall Dimensions | 610*670*1800 mm (L*W*H) |
| Net weight: | 700kg |
| Attachment | A vacuum pump, a deduster, water tank, a powder collecting box, and a set of mould. |
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your capsules,the target capacity you want the machine meet. The more information the better.
