HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/ISO9001 |
| Model Number: | NJP-400C |
| Minimum Order Quantity: | 1 Set |
| Price: | $12500-$15000/set |
| Packaging Details: | packed with PE film and fixed in export wooden box |
| Delivery Time: | 50 working days after received your payment |
| Supply Ability: | 20 Set per month |
| Machine Name: | NJP 400C Automatic Capsule Filling Machine | Output: | Max.24000 Capsules/h |
|---|---|---|---|
| Machine Material: | SS 304/316 | Control System: | SIEMENS PLC Control |
| Capsule Size: | No. 00#-4# | Vacuum Pump: | Water Circulating Vacuum Pump |
| High Light: | Capsule Filling Equipment,Capsule Filler Machine |
||
Powder Pills Encapsulated Capsule Filling Equipment Fully Automatic
Description
1. It adopts multi-bore dosing, batch-type rotating and speed frequency controlling..
2.It includes whole capsule filling process: capsule sowing, separating, filling, un-separated
capsule rejecting, closing, filled capsule outputting.
3.Newly designed structure: the closed ten position rotating pad comes with high precision, low
noise which is suitable for different quality of capsules. Both powder and pellet filling.
4.This machine comes with dust collect for recycling and saving raw material. All contact parts are
made by high quality stainless steel which meets GMP standard.
Technical Parameter
|
Item |
NJP-400C |
|
Output |
400capsules/min |
|
Bores |
3 |
|
Rate of capsule filling |
99% |
|
Appropriate for capsule |
00#-4# |
|
Total Power |
8kw |
|
Noise standard: |
﹤75dB(A) |
|
Weight |
700kg |
|
Dimension |
700*900*1800mm |
|
Hard Capsule Filling is suitable for filling the capsule of powdery and granular drugs. Hard Capsule Filling adopts multi-bore dosing, intermittent motion and frequency conversion. It can automatically completely capsule feeding, separating, filling, (waste capsule rejecting), capsule closing, finished product discharging and die cleaning. |
|

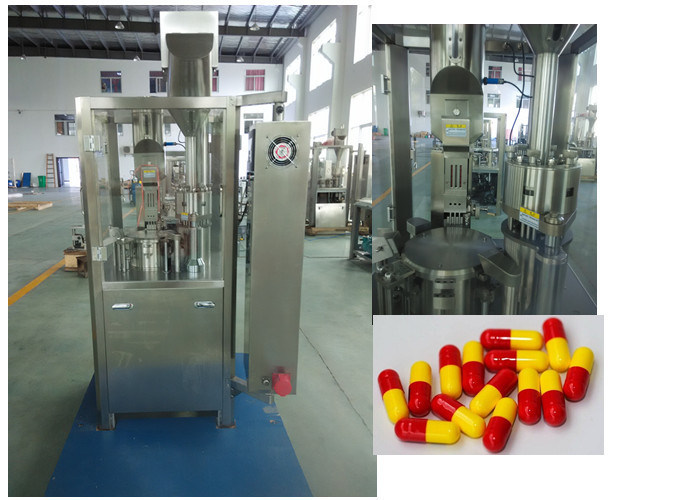

Picture of product
