| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | ZH-120P |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 45 working days after received your payment. |
| Supply Ability: | 10 Set per month |
| Product Name: | Bottle Blister Cartoning Machine | Output: | Max.120 Boxes/min |
|---|---|---|---|
| Box Dimension Range: | (55-200)mm*(20-80)mm*(14-45)mm | Material Consist: | Stainless Steel 304 |
| Capacity Of Air Compressor: | ≥0.5Mpa 120-160L/min | Weight: | 1600KG |
| Dimension: | 4200*1200*1600mm | ||
| High Light: | Automatic Carton Packing Machine,Carton Sealer Machine |
||

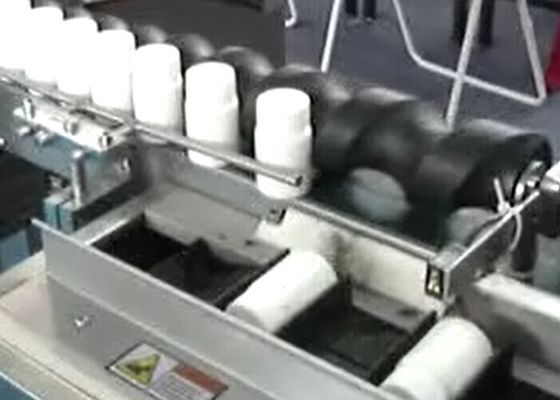

PLC Control ZH 120P Automatic Cartoning Machine for Small Medicine Bottle
It suitable for automatic inserting ALU/PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to blister packing machine to form production line
Specifications
| Machine Model | DXH-120WP | |
|
Cartoning speed |
50-60 carton/min |
|
|
Carton |
Request |
250-350g/m2(according to carton size) |
|
Specification |
(50-200)*(20-80)*(14-45)mm |
|
|
Leaflet |
Request |
55-65g/m2 |
|
Dimension Range |
(80-240)*(90-190)mm(L*W) |
|
|
Folding area |
(1-4)fold |
|
|
Compressed air |
Pressure |
≥0.5Mpa |
|
Consumption |
120-160L/min |
|
|
Power |
220V 50HZ 0.75kw |
|
|
Dimension |
4200*1200*1600mm (L*W*H) |
|
|
Net weight |
1600kg |
|
Description
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your products,the target capacity you want the machine meet. The more information the better.
