HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE |
| Model Number: | DPP-140A |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 15 Set per month |
| Product Name: | Blister Packing Machine | Output: | Max.45cutting/min |
|---|---|---|---|
| Max. Forming Area And Depth: | 140*110*15 | Pulling: | Step Motor Driving |
| Material Consist: | SS304/316 | Control: | PLC Control |
| Detection System: | Mechanical Detection Or Visual Inspection | Plate Correspondence: | PRC System |
| Used: | Pill Or Capsule Or Tablet Or Food Etc. | ||
| High Light: | PVC Blister Packing Machine,Blister Packing Equipment |
||

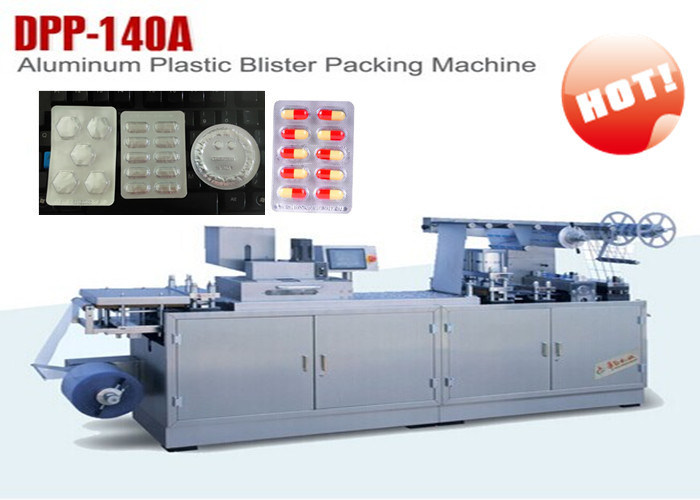

Plastic Pharmaceutical Blister Pack Sealing Machine Recycle Water
It is the ideal packing equipment with convenience operation, full purpose function. The product passed the CE certification and meet the GMP requirement.
Specifications
|
Model |
140A |
|
|
Machine Body |
Stainless Steel 304 |
|
|
Blanking frequency(times/min) |
15-45 |
|
|
Adjustable pulling length |
30-120mm |
|
|
Blister Plate Size |
Design According To Customers’ Requirements |
|
|
Max Forming area and depth(mm) |
140*110*15 (20 need Private custom) |
|
|
Air compressor (Don't provide) |
0.6-0.8Mpa ≥0.4m3/min |
|
|
Mould cooling (Recycle water or circulating water consumption) |
40-80 L/h |
|
|
Power supply (Three phase) |
380V/220V 50HZ 5.5KW (According to the customer need to select the voltage) |
|
|
Wrapper specification(mm) |
PVC |
160*(0.15-0.6)*(Φ400) |
|
Aluminum foil |
160*(0.02-0.035)*(Φ400) |
|
|
Overall Dimension(L*W*H)(including foundation) |
2400*650*1450 |
|
|
Dimension of Each Part |
1300*650*1250front) |
|
|
1050*650*1450(back) |
||
|
Weight |
About 800kg |
|
Description
Applications
Blister Machine DPP140A is ideal for producing small batches of high quality blister packs in:
Pharmaceutical Research and Development laboratories, Clinical trials, Stability studies, Package development, Marketing, samples, Pharmaceutical production and packaging departments.
OVERALL SKETCH
WARRANTY
