HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/ISO9001 |
| Model Number: | DPP-260 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 20 Set per month |
| Product Name: | Automatic Plastic Tray Packing Machine | Punching Frequency: | 10-50 Cutting/ Min |
|---|---|---|---|
| Packaging Material: | PVC PE PET | Power: | 380V 50Hz 4.5Kw |
| Max. Forming Area And Depth: | 250*180*30 | Applications: | Pharmaceutical Industry, Food Industry, Electronic Industry And Small Hardware. |
| Weight: | About 600kg | ||
| High Light: | Plastic Plate Making Machine,Disposable Plastic Products Making Machine |
||

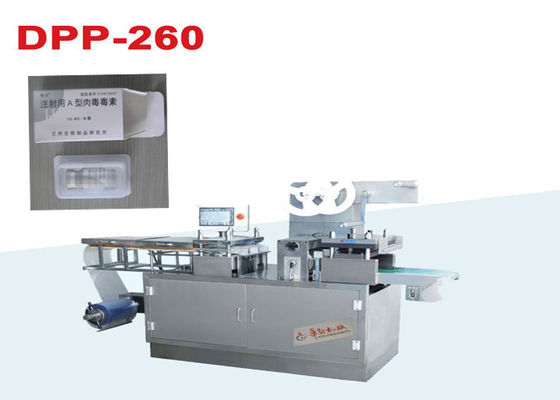

Name:Pharmaceutical Tray Blister Making Machine Thermoforming Plastic Case Making Machine
Introduction:
This machine Mainly used for the products with simple structure but in big quantity, such as small cake trays, button cell trays, cup carriers and disposable medical care products.
TECHNICAL PARAMETER
|
Item Model |
DPP-260 |
|
|
Cutting Frequency |
10-50times/min |
|
|
Max. Forming Area and Depth |
250×180×30 |
|
|
Pulling Length |
40-200 |
|
|
Packaging material(I.D.Φ75) |
PVC(mm) |
(0.15-0.8)×260×(Φ400) |
|
PTP(mm) |
(0.15-0.8)×260×(Φ400) |
|
|
PET(mm) |
(0.15-0.8)×260×(Φ400) |
|
|
Power |
380V 50Hz 4.5k |
|
|
Air compression(self-prepared) |
0.6-0.8Mpa≥0.5m³/min |
|
|
Recycle water or circulating water consumption |
40-80L/h |
|
|
Overall Dimension(L*W*H) |
2100×750×1450(including foundation) |
|
|
Weight |
About 600kg |
|
Performance and characteristic
TRAY PRODUCTS
PACKAGE
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your product,the target capacity you want the machine meet. The more information the better.
