| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | ZH-120P |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 45 working days after received your payment. |
| Supply Ability: | 10 Set per month |
| Product Name: | Bottle Blister Cartoning Machine | Output: | Max.120 Boxes/min |
|---|---|---|---|
| Box Dimension Range: | (55-200)mm*(20-80)mm*(14-45)mm | Material Consist: | Stainless Steel 304 |
| Capacity Of Air Compressor: | ≥0.5Mpa 120-160L/min | Weight: | 1600KG |
| Dimension: | 4200mm*1200mm*1600mm | Motor Power: | 0.75kw 220v 50Hz |
| High Light: | Auto Cartoning Machine,Carton Sealer Machine |
||

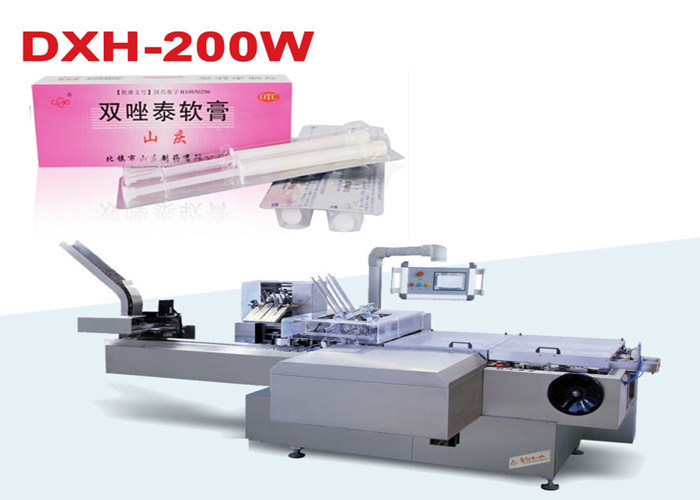

Pharmaceutical Package Blister Cartoning Machine For Puch , Injection , Medicine
Specifications
| Machine Model | DXH-120WB | |
|
Cartoning speed |
50-60 carton/min |
|
|
Carton |
Request |
250-350g/m2(according to carton size) |
|
Specification |
(50-200)*(20-80)*(14-45)mm |
|
|
Leaflet |
Request |
55-65g/m2 |
|
Dimension Range |
(80-240)*(90-190)mm(L*W) |
|
|
Folding area |
(1-4)fold |
|
|
Compressed air |
Pressure |
≥0.5Mpa |
|
Consumption |
120-160L/min |
|
|
Power |
220V 50HZ 0.75kw |
|
|
Dimension |
4200*1200*1600mm (L*W*H) |
|
|
Net weight |
1600kg |
|

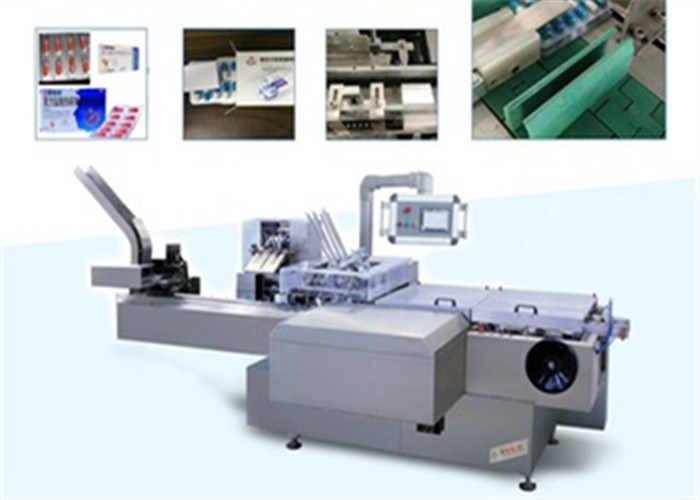

Description
Cartoning machine is suitable for blister cartoning, bottle, pouch and injection, medicine, cosmetic,
condom. food, tube, ointment, wrapped products. The machine finished running by a series of photo
electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds
leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number,
sealing or option hot glue device. The machine can be single used or linked with Filling Machine, Blister
Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your products,the target capacity you want the machine meet. The more information the better.
