| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DXH-120WB |
| Minimum Order Quantity: | 1set |
| Price: | Negotiation |
| Packaging Details: | EXPORTED WOODEN BOX |
| Delivery Time: | 30 working days after received your payment. |
| Supply Ability: | 10 Set per month |
| Product Name: | Blister Cartoning Machine | Output: | Max.120 Boxes/min |
|---|---|---|---|
| Box Dimension Range: | (55-200)mm*(20-80)mm*(14-45)mm | Material Consist: | Stainless Steel 304 |
| Control: | PLC Control | Capacity Of Air Compressor: | ≥0.5Mpa |
| Power Supply: | 380V/220V 50HZ 0.75KW | ||
| High Light: | Auto Cartoning Machine,Carton Sealer Machine |
||

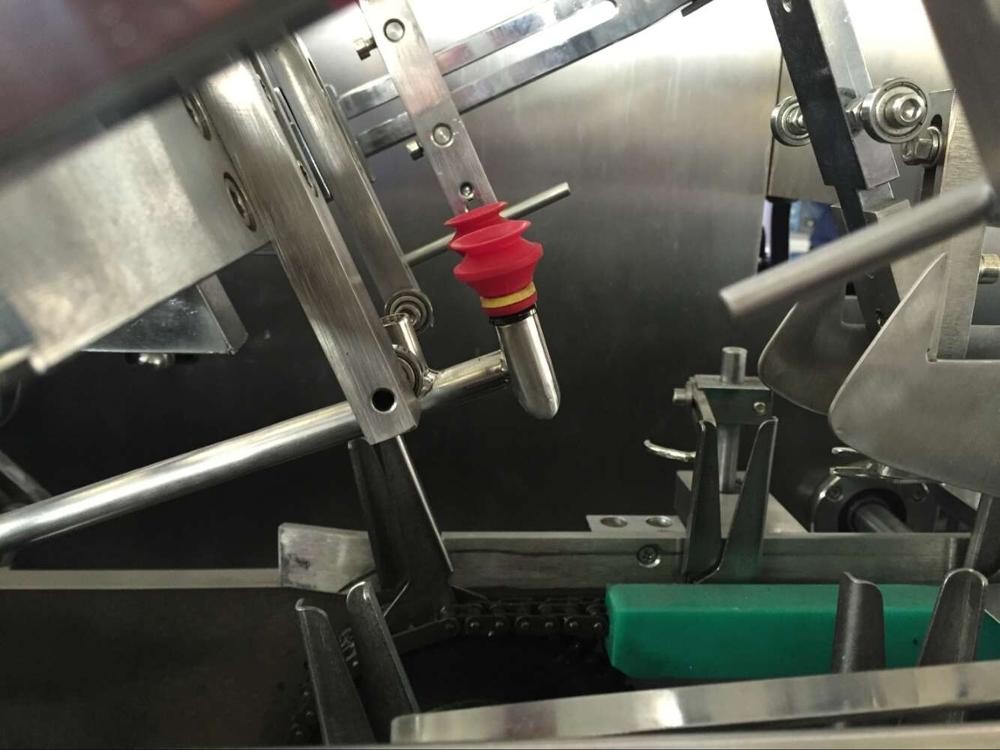

Pharmaceutical Carton Box Packaging Machine Medicine Blisters Cartoning Machine
This machine can pack different sizes and specifics of blister plate or similar objects with
automatic leaflet folding, inserting, carton opening, batch number embossing and carton
sealing (hot glue sealing is an optional for the machine).
Specifications:
blister box packing machine
PLC and touch screen
Speed is 100boxes/min
Insert leaflet and product
CE,GMP
Description
DXH-120WB main technical parameters
|
Speed |
50-120box/min |
|
|
Carton |
Quality Requirement |
250-350g/m2 |
|
Dimension Range (L×W×H) |
(50-200) ×(20-80) ×(14-45)mm |
|
|
leaflet |
Quality Requirement |
55-65g/m2 |
|
Folded Leaflet Specification |
(80-240)X(90-190)mm |
|
|
Folding Range |
1-4 fold |
|
|
Air Consumption |
>0.5Pa 120-160L/min |
|
|
Motor Power |
0.75kw 220V 50HZ |
|
|
Machine Dimension (L×W×H) |
3100x1100x1600mm |
|
|
Machine Net Weight |
About 1500kg |
|
WARRANTY
