HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/ISO9001 |
| Model Number: | NJP-200C |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 30 Set per month |
| Product Name: | Aotomatic Capsule Filling Machine | Material Consist: | Stainless Steel 304/316 |
|---|---|---|---|
| Control: | PLC Control | Vacuum Pump: | Water Circulating Vacuum Pump |
| Fining Precision: | Higher Than 99% | Guarantee: | 1year |
| High Light: | Automatic Capsule Filler,Capsule Filler Machine |
||

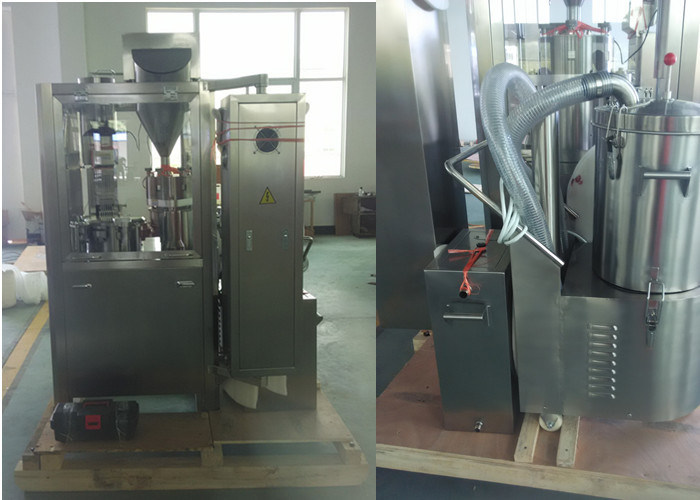

Automatic Capsule Filling Machine
Specifications
|
Model |
NJP-1200 |
NJP-800 |
NJP-400 |
NJP-200 |
|
Output |
1200 |
800 |
400 |
200 |
|
NO of Filling hole |
9 |
6 |
3 |
2 |
|
Capsule filling hole |
00#-4# |
00#-4# |
00#-4# |
00#-4# |
|
Total Power |
5kw |
4kw |
3kw |
3kw |
|
Weight |
900kg |
800kg |
700kg |
600kg |
|
Dimension |
800×1000×1800mm |
730×950×1800mm |
700×900×1800mm |
610×670×1800mm |
Description
|
Touch Screen operation system with PLC Control ensure the machine under stable working situation.
|
|
Imported Filling Spring affords million times pressing but never change their shape to ensure the filling dosage in accurate range.
|
|
High efficiency German brand Siemens vacuum pump ensure machine in long time working.
|
|
High efficiency industrial dust collector for saving material and ensure machine under cleaning environment working.
|
|
The moulds are all processed in our CNC Machining Center to make machine accurate working without wear out or wrong dosage.
|
|
Online status printing is available
|
|
Automatic capsule and powder elevator are available.
|
Applications
This machine is an intermittent full automatic capsule filling machine with multiple tamping stations,precise design and stable performance.It can complete the following process automatically:feeding capsule,separating capsule,filling,rejecting defective capsule,closing,discharging finished capsule.It adopt totally enclosed rotary table with twelve stations.There are 6 holes in single row on the module.Machine performance meet international advanced standard,which also meet the requirement of "GMP"and FDA standard.It's absolutely the most ideal equipment for producing capsule products.
