HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DXH-120WB |
| Minimum Order Quantity: | 1Set |
| Price: | $20000 -$40000 /set |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 50 working days after received your payment. |
| Supply Ability: | 10 Set per month |
| Product Name: | Carton Packing Machine | Output: | Max.120 Boxes/min |
|---|---|---|---|
| Box Dimension Range: | (50-200)mm*(20-80)mm*(14-45)mm | Material Consist: | Stainless Steel 304 |
| Control: | PLC Control | Capacity Of Air Compressor: | ≥0.6Mpa |
| Power Supply: | 380V/220V 50HZ 0.75KW | ||
| High Light: | Auto Cartoning Machine,Carton Sealer Machine |
||

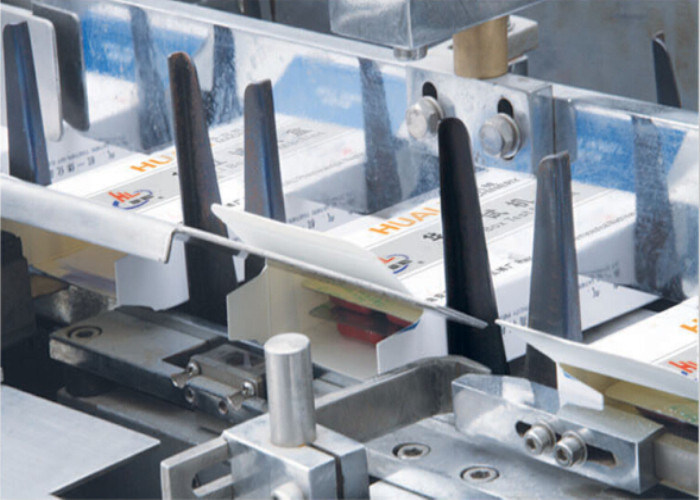

New ConditionPharmaceutical Automatic Blister Cartoning Machine With PLC
Specifications
blister box packing machine
PLC and touch screen
Speed is 50-100boxes/min
Insert leaflet and product
CE,GMP
Description
Parameters
| Machine Model | DXH-120W | |
| Max encasing speed | 120 boxes/min | |
| Box | Quality requirement | 250-350g/㎡(according to carton size) |
| Dimension Rang (L*W*H) | (55-200)×(20-80)×(14-45)mm | |
| Leaflet | Quality requirement | 55-65g/m² |
| Folded Leaflet Specification(1-4) Fold | (80-240)×(90-190)mm (L×W) | |
| Compressed air | Pressure | ≥0.6Mpa |
| Consumption | 0.3 m³/min | |
| Motor Power | 220V 50HZ 1.5kw | |
| Dimension | 3100×1100×1600mm (L×W×H) | |
| Net weight |
1500kg |
|
Applications

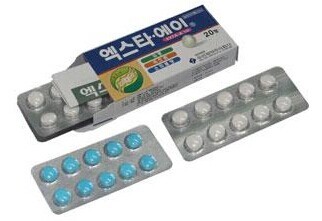

The machine is suitable for blisters,cosmetics,electrical and so on with automatic leaflet folding inserting, carton opening, object cartoning, batch number embossing and cartooning sealing (hot glue sealing is an optional for the machine). It adopts PLC control with touch screen operation with all working stations equipped electronic sensor for running status monitoring. The machine can be connect to blister packaging machine as production line.
