HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DTJ-V |
| Minimum Order Quantity: | 1 Set |
| Price: | $4500-7000 /Set |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 30 Set per month |
| Product Name: | Semi-automatic Capsule Filling Machine | Output: | 8000-12000 Capsules/h |
|---|---|---|---|
| Material Consist: | Stainless Steel 304/316 | Control: | PLC Control |
| Vacuum Pump: | Oil Vacuum Pump (XD-040 40m3/h) | Capacity Of Air Compressor: | 0.1m3/min |
| Power Supply: | 380V/220V 50HZ 2.1KW | Used: | Powder Or Granules |
| High Light: | Small Capsule Filling Machine,Semi Automatic Capsule Filler |
||
Name:Mutifunctional Filling Equipment Capsule Filling Machine For granul pellet powder
Applications
This special capsule filling machine is suitable for medium & small pharmaceutical
factory, hospital preparation lab, etc.
The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with
powder or granules.
Specifications
|
Output |
8000-12000 |
|
Capsule size |
No. 00#-5# & Safety Capsule A-E |
|
Power supply |
380V 50HZ 2.1KW |
|
Vacuum pump |
XD-040(40m3/h) |
|
Capacity of air compressor |
0.1 m3/min |
|
Noise |
<60dB(A) |
|
Overall dimensions:(mm) |
1200×700×1600 |
|
Net weight:(Kg) |
330kg |
Hole
| Capsule Type | Hole |
| 1-5# | 420 |
| 0# | 360 |
| 00# | 300 |
| 000# | 250 |
Description
The machine is adopted programmable control system, touch panel operation, step-less transduction
speed-shift, and electronic automatic counter.
It automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate,
and the complete operation is convenient.
|
1: Pedal |
7: Filling mechanism |
|
2: Output |
8: Input of Capsule (The hopper) |
|
3: Filling Control Button |
9: Capsule dispensing mechanism |
|
4: Pins Plate |
10: Security Baffle |
|
5: Locking mechanism |
11: The mold |
|
6: Input of Powder |
12: Control panel |
|

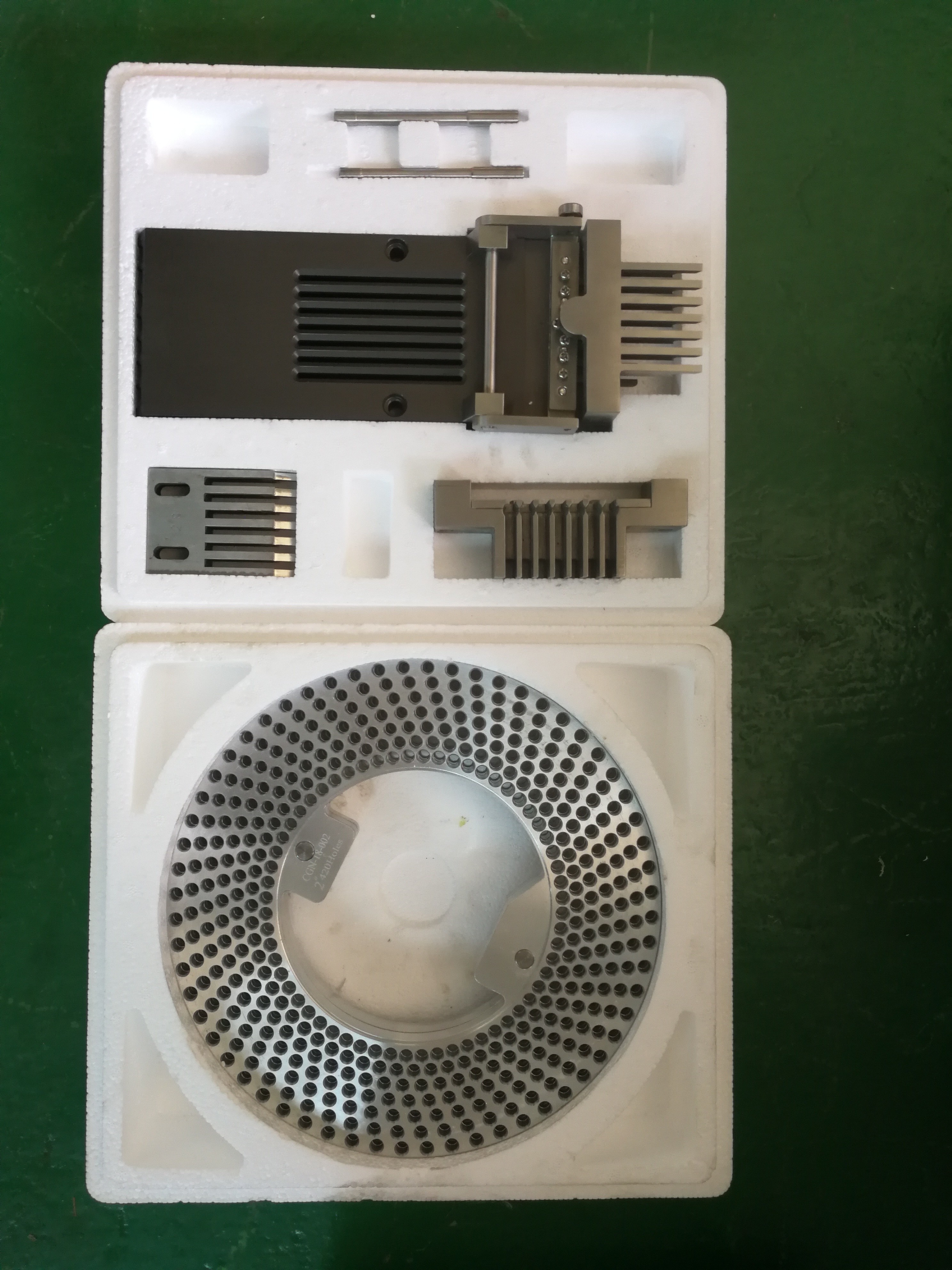

NO |
Name |
|
1 |
Capsule-dispensing pipe |
|
2 |
Capsule-pressing head |
|
3 |
Capsule-carrying switch |
|
4 |
Capsule-carrying comb |
|
5 |
Capsule-carrying comb base |
|
6 |
Capsule-driving plate |
|
7 |
Pin disk |
|
8 |
Capsule ring |
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your capsules,the target capacity you want the machine meet. The more information the better.
