PTFE（High Temperature Resistant, Non Stick Coating）
Mechanical Detection Or Visual Inspection
Alu-PVC Blister And Alu-Alu Blister
Pharmacy Blister Packaging Machine
Alu Alu Blister Machine

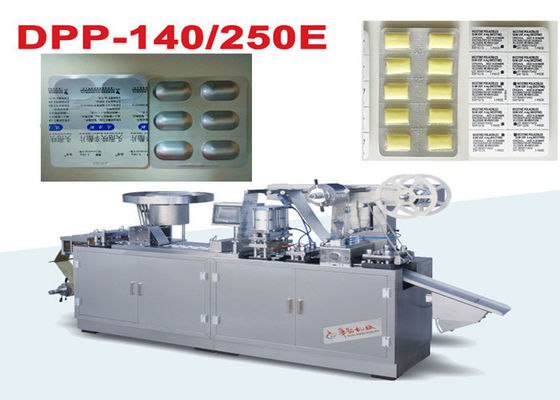

Multi Function PVC Alu Alu Blister Packing Machine , Blister Packaging Equipment
The machine combine with two functions, it can be used as Aluminum Aluminum blister packing machine and Aluminum plastic blister packing machine by changing moulds.
This machine make Alu-Alu and Alu-PVC by changing moulds.
Stainless Steel 304/316
Adjustable pulling length
Max Forming area and depth(mm)
(Recycle water or circulating water consumption) 40-80 L/h
Power supply(Three phase)
380V/220V 50HZ 4.5KW
380V/220V 50HZ 8KW
Wrapper specification (mm)
Alu Alu Foil
Aluminum Foil: 260*(0.02-0.15)*(Φ400)
Dimension of Each Part
1: PVC feeder
2: PVC transporting roller
3: Heating box
4: Forming mechanism(the material of punch head is PTFE)
5: Medicine feeder
(The manual feeding without this station)
7: PTP transporting roller
8: Heat-sealing mechanism
9: Trace-pressing mechanism
10: PTP feeding mechanism & scrap-collector
11: Tow mechanism
12: Blanking mechanism
13: Finished product output
When make ALU ALU product:
Turn off No.3 (Heating box),change the feeder to shaking type feeder and change molds(Forming up and
down molds, sealing up and down molds, blanking up and down molds)
When make ALU PVC product: Turn on all of the stations.
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your products,the target capacity you want the machine meet. The more information the better.
