| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DXH-200WB |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 50 working days after received your payment. |
| Supply Ability: | 10 Set per month |
| Machine Name: | Blister Cartoning Machine | Output: | Max.200 Boxes/min |
|---|---|---|---|
| Box Dimension Range: | (55-200)mm*(20-100)mm*(14-70)mm | Material Consist: | Stainless Steel 304 |
| Control: | PLC Control | Capacity Of Air Compressor: | ≥0.6Mpa |
| Power Supply: | 380V/220V 50HZ 2.2KW | ||
| High Light: | Auto Cartoning Machine,Automatic Carton Packing Machine |
||

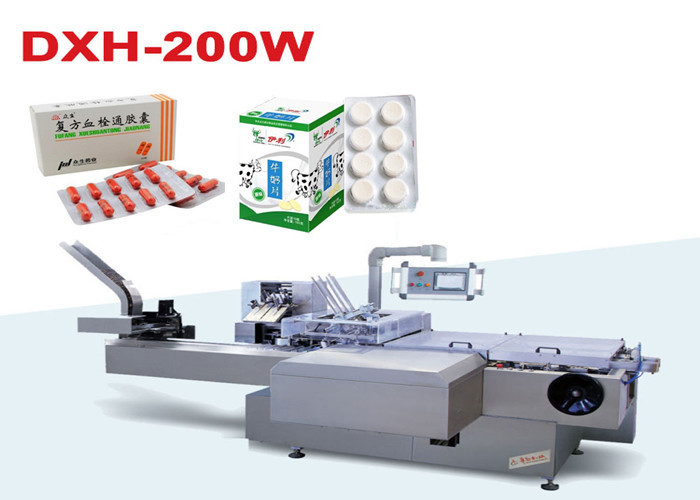

Medicine Blisters Carton Box Packing machine with high speed 200 boxes/min
Quick introduction
blister box packing machine
PLC and touch screen
Speed is 200boxes/min at max
Insert leaflet and product
CE,GMP
Application
The machine is suitable for packaging different objects with automatic leaflet inserting, carton opening, object cartoning, batch number embossing and carton sealing, such as ALU-PVC blister plate, bottles, cosmetics, playing cards, electronics and daily use hardware, etc.
The machine can work isolated or connecting to other packaging machines as a production line.
Specifications
| Machine Model | DXH-200W | |
|
Max encasing speed |
200box/min |
|
|
Carton |
Quality Requirement |
250-350g/m2 |
|
Dimension Range (L×W×H) |
(55-120) ×(20-100) ×(14-70)mm |
|
|
leaflet |
Quality Requirement |
50-70g/m2 |
|
Folded Leaflet Specification |
(80-240)X(90-190)mm |
|
|
Folding Range |
1-4 fold |
|
|
Air Consumption |
>0.3m3/min 0.6mpa |
|
|
Motor Power |
2.5kw 380V 50HZ |
|
|
Machine Dimension (L×W×H) |
4300x1440x1600mm |
|
|
Machine Net Weight |
About 1500kg |
|
Description
This is a newly designed machine based on domestic and abroad advanced technology which combined Mechanical, electrical, pneumatic and optical together.
