| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DXH-120WB |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 50 working days after received your payment. |
| Supply Ability: | 10 Set per month |
| Product Name: | Carton Packing Machine | Output: | Max.120 Boxes/min |
|---|---|---|---|
| Box Dimension Range: | (50-200)mm*(20-80)mm*(14-45)mm | Material Consist: | Stainless Steel 304 |
| Control: | PLC Control | Capacity Of Air Compressor: | ≥0.6Mpa |
| Power Supply: | 380V/220V 50HZ 0.75KW | ||
| High Light: | Automatic Carton Packing Machine,Carton Sealer Machine |
||

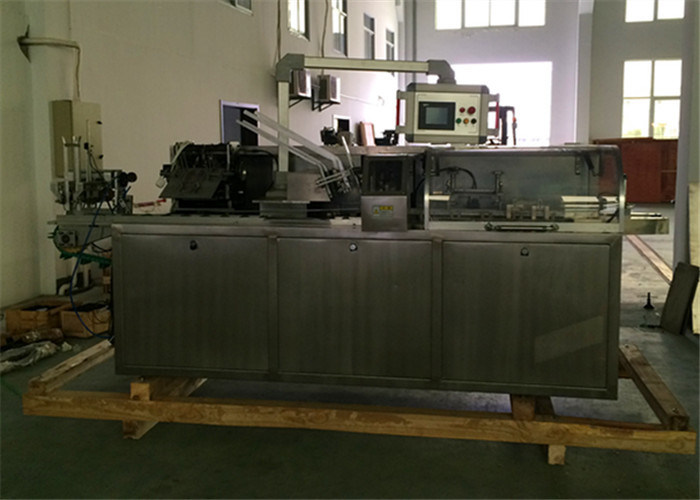

Medical Plates Carton Box Automatic Packing Machine Pharmaceutical outer packaging machine
Applications
The machine is suitable for blisters,cosmetics,electrical and so on with automatic leaflet folding inserting, carton opening, object cartoning, batch number embossing and cartooning sealing (hot glue sealing is an optional for the machine). It adopts PLC control with touch screen operation with all working stations equipped electronic sensor for running status monitoring. The machine can be connect to blister packaging machine as production line.
Parameters
| Machine Model | DXH-120WB | |
| Max encasing speed | 120 boxes/min | |
| Box | Quality requirement | 250-350g/㎡(according to carton size) |
| Dimension Rang (L*W*H) | (50-220)×(20-80)×(14-45)mm | |
| Leaflet | Quality requirement | 50-70g/m2 |
| Folded Leaflet Specification(1-4) Fold | (80-240)×(90-190)mm (L×W) | |
| Compressed air | Pressure | ≥0.6Mpa |
| Consumption | 0.3 m3/min | |
| Motor Power | 220V 50HZ 0.75kw | |
| Dimension | 3100×1100×1600mm (L×W×H) | |
| Net weight |
1500kg
|
|
Description
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your products,the target capacity you want the machine meet. The more information the better.
