HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | China |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/GMP Standard |
| Model Number: | DPP-350A |
| Minimum Order Quantity: | 1Set |
| Price: | 10000usd-3000usd/set |
| Packaging Details: | 1.The machine will not be shaking in transport with wooden fixed. 2.The machine will not be affected with damp in transport with packed with PE plastic bags. 3.Easy shaking station will fixed with hard rope. 4.Long machine will packed separately. 5.If ther |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 5 Sets per month |
| Product Name: | Liquid Blister Packing Machine | Output: | Max.30 Cutting/min |
|---|---|---|---|
| Max. Forming Area And Depth: | 350*130*30 | Pulling: | Step Motor Driving |
| Material Consist: | SS304/316 | Used: | Mineral Water, Honey, Butter |
| High Light: | PVC Blister Packing Machine,Blister Packaging Machinery |
||
Liquid Blister Packing Machine Suitable For mineral Water, Honey, Butter And Juice, Blister Cup Forming Machine
Quick Detail:
Capacity: 45-100 Sheets per min
Certificate: CE CertificateMax Forming depth of PVC:350*130*15mm
Blanking frequency:15-45 Cutting/min
Material: Stainless steel 304
Capacity of air compressor:≥0.6 m3/min
Model No.: DPP-350A
Power Supply: 380V 50HZ Three Phase
Description:
1. Travel scope can be adjusted.
2. Alu Alu Blister Packaging is available for this machine.

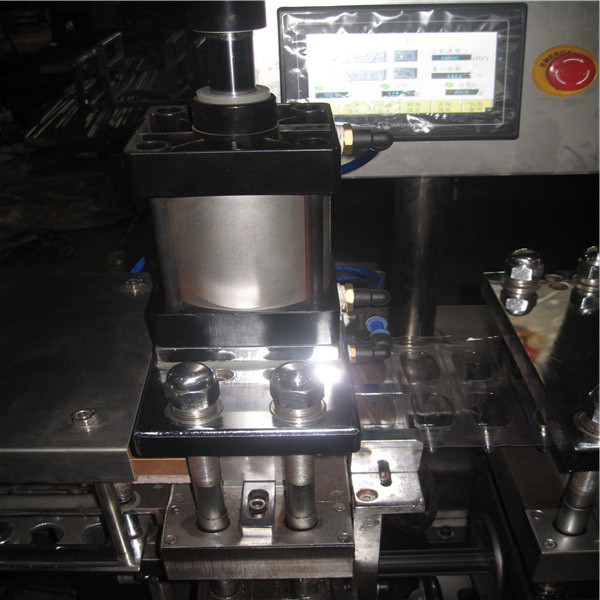

3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.
5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
7. Stepping motor Pulling Material more accuracy and easy adjusting
8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Applications:
This machine is our engineer update based on DPP-250 model and our clients' feedback infomation,and fetch in advanced technology from aboard .Strickly improve it according to GMP standard.A waste material collecting device has been designed to this machine which can make its function much perfect.
Adjustable stroke:freely change the size of sheet and suitable for productioln of various kinds of specifications.
Flat-plate framework :It is suitable for pack any kind of shape ,such as square ,triangle.oval and etc.
Positive press forming : makes the bubble's symmetrical ,upright,and make the finished products much perfect.
Specifications:
| Item Model | DPP-350A | |
| Cutting Frequency(ideal sizes:80*57mm) | 15-45 cutting/min | |
| Max. Forming Area and Depth | 350×130×15mm | |
| Adjustable Scope of Travel(mm) | 30-140mm | |
| Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.6)×350×(Φ400) |
| PTP(mm) | (0.02-0.15)×350×(Φ400) | |
| Paper(mm) |
(50-100)g/㎡ ×350×(Φ400) |
|
| Power | 380V 50Hz 9.5kw | |
| Air compression(self-prepared) | 0.6-0.8Mpa≥0.6m³/min | |
| Recycle water or circulating water consumption | 40-80L/h | |
| Overall Dimension(L*W*H)(including foundation) | 3650×850×1700mm | |
| Dimension of Each Part | 1850×850×1700(front) | |
| 1800×850×1650(back) | ||
| Weight | About 2000kg | |
