| Place of Origin: | China |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | ISO9001 |
| Model Number: | DZP-320 |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | packed in plastic bag and fixed in export wooden box |
| Delivery Time: | 40 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 10 Set per month |
| Product Name: | Paper And PVC Blister Packing Machine | Output: | Max.25 Cutting/min |
|---|---|---|---|
| Max. Forming Area And Depth: | 250*160*40 | Max.Paper-card Size: | 320*200(200-700g) |
| Material Consist: | Stainless Steel 304 | Control: | PLC Control |
| APPLICATION: | Medicine,cosmetic And Daily Necessities, Etc. | ||
| High Light: | PVC Blister Packing Machine,Blister Packing Equipment |
||

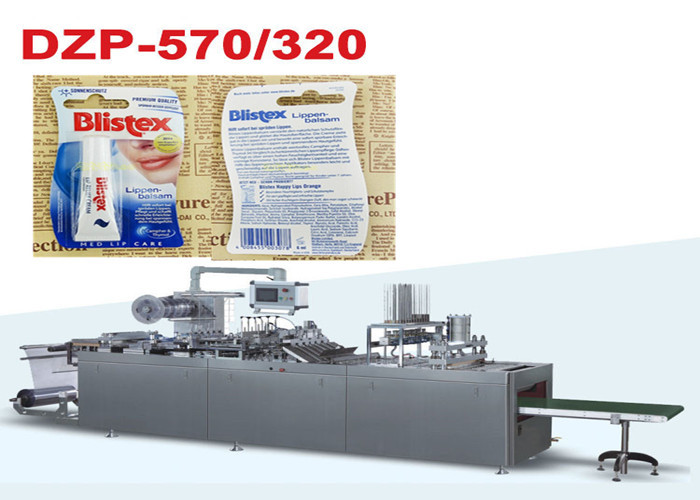

Lipsticks paper PVC blister packing machine/ widely used card blister packing machine
This machine is a ideal packing machine which is suitable for blister card packaging for different industries, such as food, cosmetics, stationery, daily necessities and so on.
Performance and characteristics:
Technical Parameter
|
Item Model |
DPZ-320 |
|
Max. Cutting Speed |
25 times/min |
|
Max. Forming Area |
250*160(mm) |
|
Max. Paper-card Size |
320*200(mm)(200g-700g) |
|
Adjustable Pulling Length |
40-160(mm) |
|
Max. Forming Depth |
40(mm) |
|
Power |
380v 50Hz 9kw |
|
Air Compression |
≥0.25 m³/min |
|
Overall Dimension(L*W*H) |
4800*600*2000(mm) |
|
Weight |
1500kg
|
