| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DPP-140E |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 30 working days after received your payment. |
| Supply Ability: | 15 Set per month |
| Product Name: | ALUMINUM ALU BLISTER PACKING EQUIPMENT | Punch Pin: | PTFE（High Temperature Resistant, Non Stick Coating） |
|---|---|---|---|
| Detection System: | Mechanical Detection Or Visual Inspection | Used: | Alu-PVC Blister And Alu-Alu Blister |
| Mould Cooling: | 40-80 L/h | Power Supply: | 220V/380V |
| High Light: | Blister Packaging Machine Pharmaceutical Industry,food vacuum packing machine |
||
ISO9001 Pharmaceutical Blister Packaging Machines Alu Blister Packing Equipment
DPP-140E mini-type Bubble-cap packing machine is the smallest, lightest, cheapest and energy consumption Lowest packing equipment among the similar mode both in domestic and abroad.
Specifications
|
This machine is a new equipment in the pharmaceutical industry, which will combine both functions, Alu-Alu and Alu-PVC by changing moulds.
|
|||
|
Model |
ALU ALU |
ALU-PVC |
|
|
Machine Body |
Stainless Steel 304/316 |
||
|
Blanking frequency(times/min) |
15-30 |
20-45 |
|
|
Adjustable pulling length |
30-120mm |
||
|
Blister Plate Size |
Design According To Customers’ Requirements |
||
|
Max Forming area and depth(mm) |
140*110*12 |
140*110*15 |
|
|
Air compressor(self-prepared) |
0.6-0.8Mpa ≥0.4m3/min |
||
|
Mould cooling |
(Recycle water or circulating water consumption) 40-80 L/h |
||
|
Power supply(Three phase) |
380V/220V 50HZ 3KW
|
380V/220V 50HZ 5.5KW
|
|
|
Wrapper specification (mm) |
Alu Alu Foil 150*(0.14-0.18)*(Φ400) |
PVC 150*(0.15-0.4)*(Φ400) |
|
|
Aluminum Foil:150*(0.02-0.15)*(Φ400) |
|||
|
Overall Dimension(L*W*H) (including foundation) |
2400*650*1450 |
||
|
Dimension of Each Part |
1350*650*1250(front) |
||
|
1050*650*1450(back) |
|||
|
Weight |
About 800kg |
||

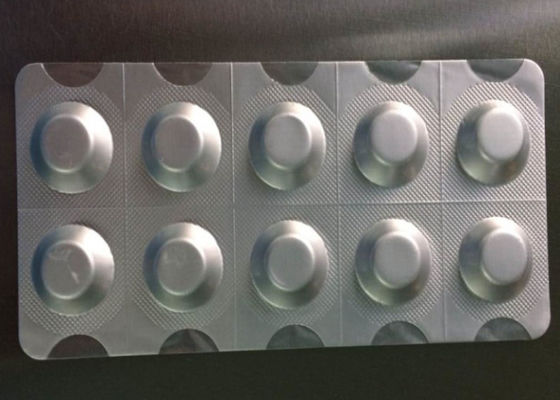

This product adopts international popular materials with good sealing,anti-moisture, protecting from light, using a special cold forming.
Description
1. Organic glass cover is optional.
2. Main motor adopts inverter speed controlling system.
3. Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing and
adjusting.
4. It adopts newly designed double hopper feeding system with high precision optical control for automatic and high efficiency feeding. It is suitable for different blister plate and irregular shape objects(the feeder can be designed according to client’s specific packaging object.)
5.The machine will stop automatically once the materials are finished. Also it has installed emergency stop to
keep safety when the workers run the machine.
