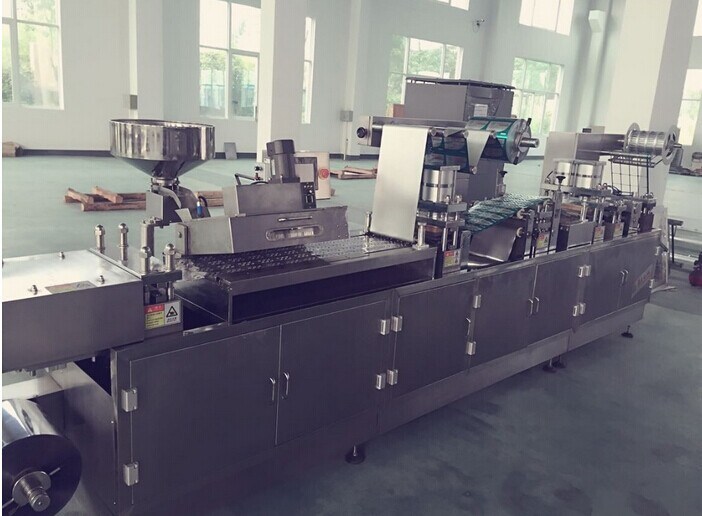

High packing standard Aluminum blister packing machine / blister wrapping machine
This high sealed tropical packing machine comes with integrating mechanism, electricity and pneumatic system under PLC control and touch screen operation. The machine is suitable for blister packing with Aluminum plastic and aluminum plastic aluminum.
Performance and characteristics:
the machine working process include automatic preheating, compressed air blow forming, feeding, detection system, PRC system, first sealing station, batch number embossing, tropical foil forming, second sealing station, perforation station, servo pulling system, cutting station, rejection system and wasted material rewinding station etc.
The machine comes with Automatic Detection System for object absence in blisters by mechanical detecting system or optical sensor or camera system which required by clients.
Cylinder hot sealing,the heating molds will automatically separate when the machine stops, which can protect the packing material from damage,extend the machine’s life.
Cutting Frequency(ideal sizes:80*57mm)
Max. Forming Area and Depth
Adjustable Scope of Travel(mm)
Alu Alu Foil
380V 50Hz 11.5kw
380V 50Hz 8.5kw
Recycle water or circulating water consumption
Overall Dimension(L*W*H)(including foundation)
Dimension of Each Part
1: PVC feeder 2: PVC transporting roller 3: Heating box 4: Forming mechanism(the material of punch head is PTFE)
5: Medicine feeder(The manual feeding without this station)
