HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | China |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | ISO9001 |
| Model Number: | DPP-320 |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 50 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 10 Set per month |
| Product Name: | Battery Blister Packing Machine | Output: | Max.25 Cutting/min |
|---|---|---|---|
| Max. Forming Area And Depth: | 250*160*40 | Max.Paper-card Size: | 320*220(200-700g) |
| Air Compressor: | ≥0.25m3/min | Power Supply: | 380V/220V 50HZ 9KW |
| High Light: | PVC Blister Packing Machine,Blister Packing Machines |
||
High Output Tablet Blister Packing Machine / Blister Packaging Machinery
Applications
High Output Battery Paper and PVC Blister Packing Machine has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance. The whole working process is full automatic, which can really save you a lot of labor cost. Moreover, the operation is very easy, you only need one staff to operate the PLC.

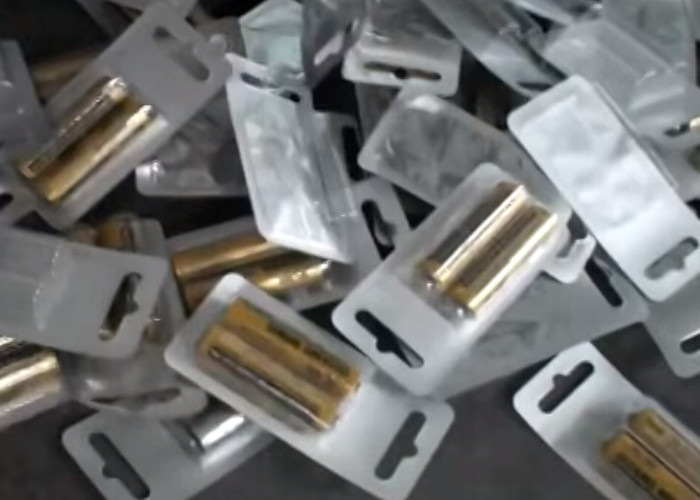

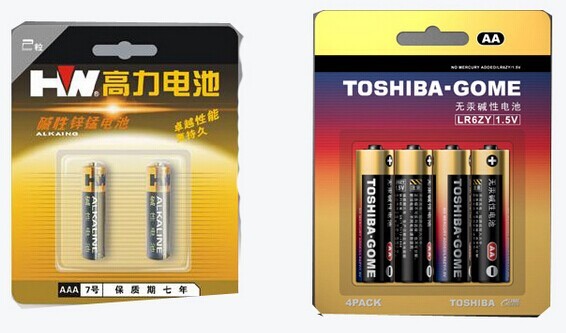

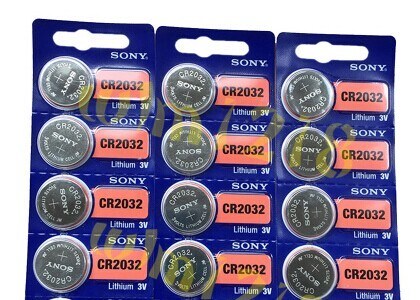

This machine is suitable for the blister card packing of battery, stationery, food, medical equipment, toys,hardware, electronics, auto parts, daily use product, cosmetic etc, such as the injector, solid gum, toy car,scissor, flashlight, battery, spark plug,lip stick, hook, shaver, pencil etc.
Specifications
|
Item Model |
DPZ-320 |
|
Max. Cutting Speed |
25times/min |
|
Max. Forming Area |
250*160(mm) |
|
Max. Paper-card Size |
320*200(mm)(200g-700g) |
|
Adjustable Pulling Length |
40-160(mm) |
|
Max. Forming Depth |
40(mm) |
|
Power |
380v 50Hz 9kw |
|
Air Compression |
≥0.25m3/min |
|
Overall Dimension(L*W*H) |
4800*600*2000(mm) |
|
Weight |
1500kg |
WORKING STEPS
PVC feeding→PVC heating & positive forming→Blister towing & punching→Waste material collecting→Mechanical hand picking blisters into sealing molds→Inspecting the blister→Feeding automatically or by hand→Feeding & inspecting cardboard→2times heating under high pressur→Finished products
