HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DPP-250E |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 30 working days after received your payment. |
| Supply Ability: | 15 Set per month |
| Product Name: | Alu Alu Blister Packing Machine | Output: | Max.45 Cuttings/minute |
|---|---|---|---|
| Max. Forming Area And Depth: | 250*120*12mm | Pulling: | Step Motor Pulling |
| Punch Pin: | PTFE（High Temperature Resistant, Non Stick Coating） | Control: | PLC Control |
| Used: | Alu-PVC & Alu-Alu | Waranty: | 1 Year |
| High Light: | Pharmacy Blister Packaging Machine,Alu Alu Blister Machine |
||
High Output Stainless Steel Automatic Blister Packing Machine with Shaking Feeder
Specifications
This Automatic ALU ALU Blister packing Machine has featuring advanced functions,easy in operation,high
output,the machine is the most ideal packingequipment for large and medium size pharmaceutical enterprises, health food and food stuff trades.
Technical Parameter
|
Model DPP--250E |
ALU ALU |
ALU-PVC |
|
|
Machine Body |
Stainless Steel 304/316 |
||
|
Blanking frequency(times/min) |
15-30 |
20-45 |
|
|
Adjustable pulling length |
30-120mm |
||
|
Blister Plate Size |
Design According To Customers’ Requirements |
||
|
Max Forming area and depth(mm) |
250*120*12 |
250*110*15 |
|
|
Air compressor(self-prepared) |
0.6-0.8Mpa ≥0.4m3/min |
||
|
Mould cooling |
(Recycle water or circulating water consumption) 40-80 L/h |
||
|
Power supply(Three phase) |
380V/220V 50HZ 4.5KW
|
380V/220V 50HZ 8KW
|
|
|
Wrapper specification (mm) |
Alu Alu Foil 260*(0.14-0.18)*(Φ400) |
PVC 260*(0.15-0.4)*(Φ400) |
|
|
Aluminum Foil:260*(0.02-0.15)*(Φ400) |
|||
|
Overall Dimension(L*W*H) (including foundation) |
2900*750*1600 |
||
|
Dimension of Each Part |
1500*750*1600(front) |
||
|
1400*750*1450(back) |
|||
|
Weight |
About 1200kg |
||
Description
Machine sketch
Attention
When make ALU ALU product:
Turn off No.2 (Heating box),change the feeder to shaking type feeder and change molds(Forming up and down
molds, sealing up and down molds, blanking up and down molds)
When make ALU PVC product: Turn on all of the stations.

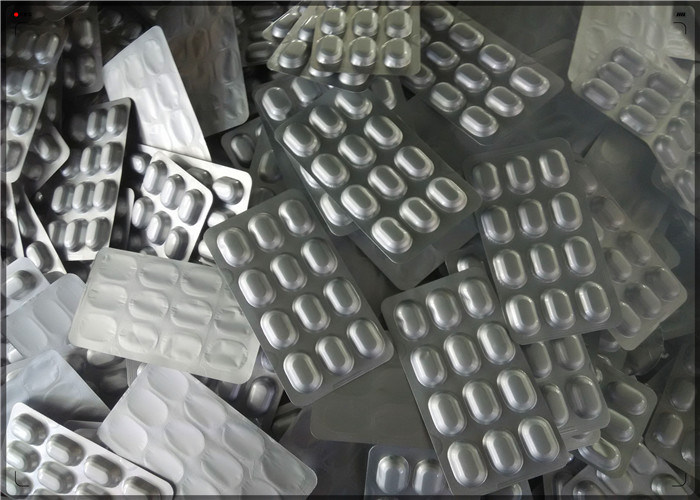

Packing feature show
