| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DPP-250A |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 30 working days after received your payment. |
| Supply Ability: | 15 Set per month |
| Name: | ALU PVC BLISTER PACKAGING MACHINE | Output: | Max.45cutting/min |
|---|---|---|---|

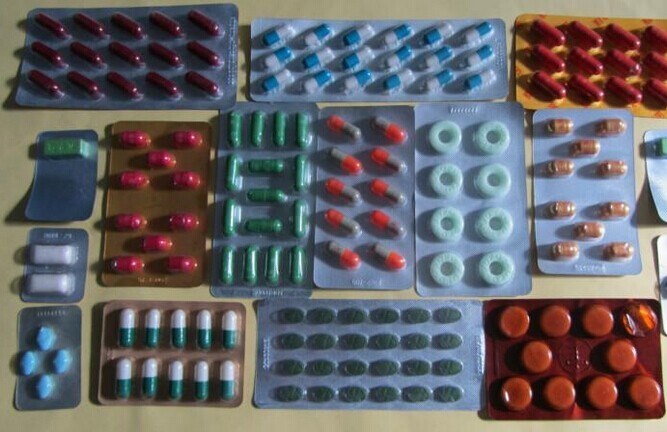

| Used: | Pill Or Capsule Or Tablet Etc. | System: | PLC Touch Screen |
| Option Parts 1: | Vision Inspection System | Motor: | Servo Motor Or Step Motor |
| High Light: | PVC Blister Packing Machine,Blister Packaging Machinery |
||
This machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on.
1) Compact and simple structure
2) Stainless steel construction
3) Confirm to GMP standard
4) Platen sealing
Main Performance and Feature:
1. With frequency step-less speed regulating, the punching frequency reaches 15-45times per minute.
2. The stroke can be adjusted within 30-130mm, which is easy to adjust with correct synchronization.
3. Adopts plate-type mould, positive-pressure forming, featured by batch number printing,creasing and cutting,aluminum-foil/plastics automatic feeding, automatic alarm for broken—piece and finished-piece and automatic stop etc.
4. Equipped with one set general feeder,which filling percentage reaches 99.5 and The feeder is fitted with dust exhaust joint so can overcome the dust problem during feeding.
5.Adopts registering matching heating so that can reduce the heat energy loss of heater to the least, and the required temperature will be greatly reduced.
6. This machine has small volume, light weight, cramped structure, easy operation and maintenance.
SPECIFICATIONS
|
Item Model |
DPP-350A |
DPP-250A |
DPP-140A |
|
|
Cutting Frequency (ideal sizes:80*57mm) |
15-45 cutting/min |
15-45 cutting/min |
15-45 cutting/min |
|
|
Max. Forming Area and Depth |
350×130×15 |
250×120×15 |
140×110×15 |
|
|
Adjustable Scope of Travel(mm) |
30-140mm |
30-130mm |
30-120mm |
|
|
Packaging material (I.D.Φ75) |
PVC(mm) |
(0.15-0.6) ×350×(Φ400) |
(0.15-0.4) ×260×(Φ400) |
(0.15-0.4) ×160×(Φ350) |
|
PTP(mm) |
(0.02-0.15) ×350×(Φ400) |
(0.02-0.15) ×260×(Φ400) |
(0.02-0.15) ×160×(Φ350) |
|
|
Paper(mm) |
(50-100)g/㎡ ×350×(Φ400) |
(50-100)g/㎡ ×260×(Φ400) |
(50-100)g/㎡ ×160×(Φ350) |
|
|
Power |
380V 50Hz 9.5kw |
380V 50Hz 8kw |
380V 50Hz 5.5kw |
|
|
Air compression (Don't Provide) |
0.6-0.8Mpa ≥0.6m³/min |
0.6-0.8Mpa ≥0.45m³/min |
0.6-0.8Mpa ≥0.4m³/min |
|
|
Recycle water or circulating water consumption |
60-100L/h |
40-80L/h |
40-80L/h |
|
|
Overall Dimension(L*W*H)(including foundation) |
3650×850×1700 |
2900×750×1600 |
2400×650×1450 |
|
|
Dimension of Each Part |
1850×850×1700(front) |
1500×750×1600(front) |
1350×650×1250(front) |
|
|
1800×850×1650(back) |
1400×750×1450(back) |
1050×650×1450(back) |
||
|
Weight |
About 2000kg |
About 1200kg |
About 800kg |
|
