| Place of Origin: | China |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/GMP Standard |
| Model Number: | DPP-250F |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | Exported Wooden Box |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 15 Set per month |
| Product Name: | Multi-function Tropical Blister Packing Machine | Output: | Max.30cutting/min |
|---|---|---|---|
| Max. Forming Area And Depth: | 250*120*15 | Material Consist: | SS304/316 |
| Mould Cooling: | 60-100L/h | Weight: | 1700kg |
| Capacity Of Air Compressor: | 0.6-0.8Mpa ≥0.5m3/min | Power Supply: | 380V/220V 50HZ 11.5KW |
| Motor Driving: | Servo Motor Driving | ||
| High Light: | Blister Packaging Machine Pharmaceutical Industry,food vacuum packing machine |
||
Applications
This machine is our engineer update based on DPP-160Fmodel and our clients' feedback infomation,and fetch in advanced technology from aboard .Strickly improve it according to GMP standard.A waste material collecting device has been designed to this machine which can make its function much perfect.
Adjustable stroke:freely change the size of sheet and suitable for productioln of various kinds of specifications.
Flat-plate framework :It is suitable for pack any kind of shape ,such as square ,triangle.oval and etc.
Positive press forming : makes the bubble's symmetrical ,upright,and make the finished products much perfect.
Quick Detail
Wrapper Specification for PVC:260*(0.15-0.4)mm
Wrapper Specification for PTP Aluminum Foil:260*(0.02-0.15)
Capacity: 900-1800 Sheets per hour
Model No.: DPP-250F
Sheet's quantity of one blanking:5-6 sheets
Material: Stainless steel 304
Blanking frequency:15-30 Cutting/min
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Technical parameters
| Double Function | ALU-PLASTIC-ALU | ALU-PLASTIC | |
| Cutting Frequency(ideal sizes:80*57mm) | 15-30 cutting/min | 20-45 cutting/min | |
| Max. Forming Area and Depth | 250×120×15mm | 250×120×15mm | |
| Adjustable Scope of Travel(mm) | 30-120mm | 30-120mm | |
| Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.4)×260×(Φ400) | (0.15-0.4)×260×(Φ400) |
| PTP(mm) | (0.02-0.15)×260×(Φ250) | (0.02-0.15)×260×(Φ250) | |
| Alu Alu Foil | (0.10-0.12)×260×(Φ400) | ||
| Paper(mm) |
(50-100)g/㎡ ×260×(Φ300) |
||
| Power | 380V 50Hz 11.5kw | 380V 50Hz 8.5kw | |
| Air compression(self-prepared) |
0.6-0.8Mpa≥0.5m³/min
|
||
| Recycle water or circulating water consumption |
60-100L/h
|
||
| Overall Dimension(L*W*H)(including foundation) |
4450×800×1600
|
||
| Dimension of Each Part |
1400×800×1600(front)
|
||
|
1650×800×1450(middle)
1400×800×1450(back)
|
|||
| Weight | About 1700kg | ||
Description
1. Travel scope can be adjusted.
2. Alu Alu Blister Packaging is available for this machine.
3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.
5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
7. Servo motor Pulling Material more accuracy and easy adjusting
8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.

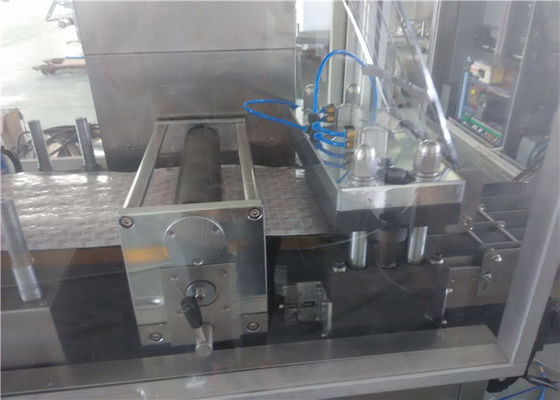

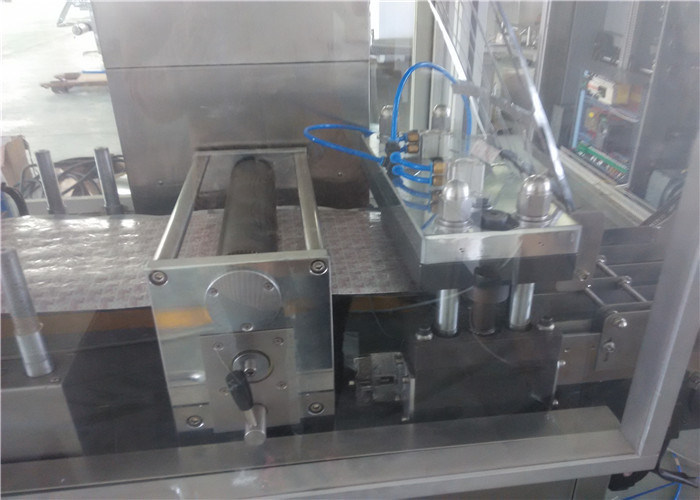

THREE LAYERS SEALING INSTRUCTION
PRODUCTS AND MACHINE
WARRANTY
