HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DPP-250E |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 45 working days after received your payment. |
| Supply Ability: | 10 Sets per month |
| Product Name: | Alu Alu Blister Packing Machine | Output: | Max.45 Cuttings/minute |
|---|---|---|---|
| Max. Forming Area And Depth: | 250mm*120mm*12mm | Pulling: | Step Motor |
| Punch Pin: | PTFE（High Temperature Resistant, Non Stick Coating） | Control: | PLC |
| Used: | Alu-PVC & Alu-Alu | Brand: | Huale |
| High Light: | Pharmacy Blister Packaging Machine,Capsule Packing Machine |
||

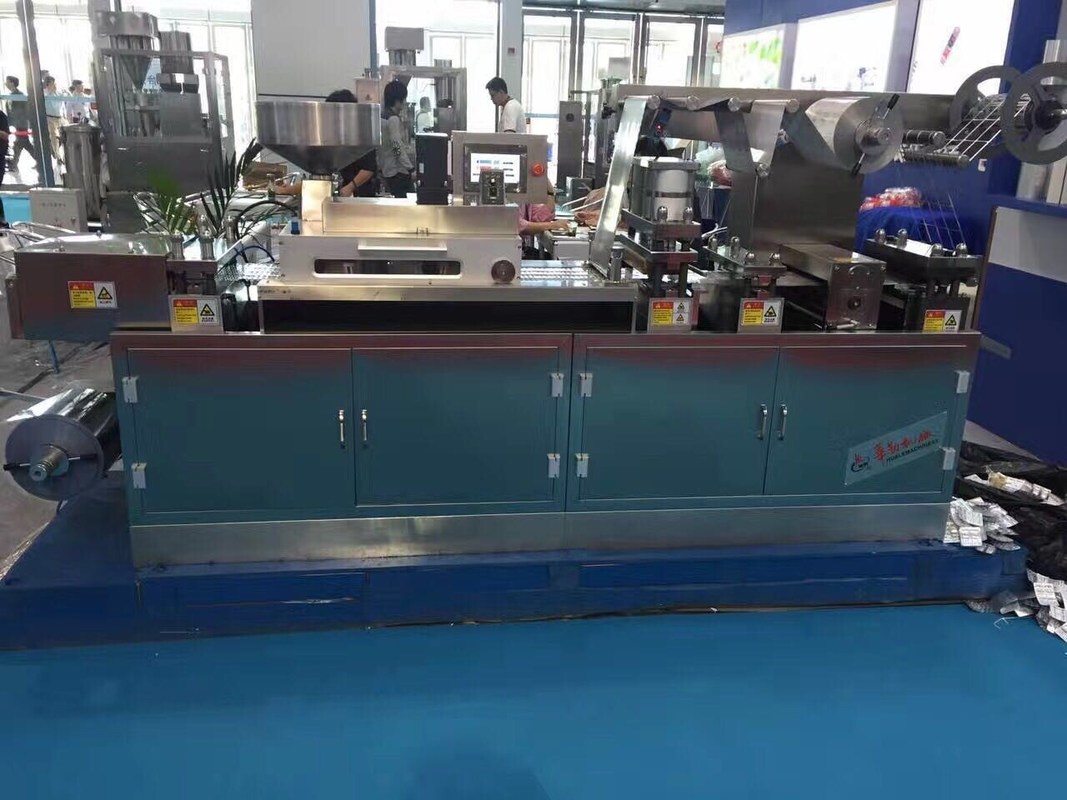

Eye Marking To Point Alu Alu Blister Packing Machine / Blister Forming Machine
Specifications
This Automatic ALU ALU Blister packing Machine is our advanced equipment designed under updated
improvement. It adopts the integral technology applying frequency inverter for speed control and mechanism,
electricity, light and air to machine. Its design is in strict compliance with GMP standard and takes lead in the
blister packer’s filed.
Main technical Parameter:
| Machine Model | DPP-250E | ||
| Machine Material | GMP standard Stainless Steel 304 | ||
| Double Function | ALU-ALU | ALU-PVC | |
| Cutting Frequency(ideal sizes:80*57mm) | 15-30 cutting/min | 20-45 cutting/min | |
| Max. Forming Area and Depth | 250×120×12mm | 150×110×15mm | |
| Adjustable Scope of Travel(mm) | 30-120mm | 30-120mm | |
| Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.4)×260×(Φ400) | |
| PTP(mm) | (0.02-0.15)×260×(Φ250) | (0.02-0.15)×260×(Φ250) | |
| Alu Alu Foil | (0.14-0.18)×260×(Φ400) | ||
| Paper(mm) |
(50-100)g/m2 ×260×(Φ300) |
||
| Power | 380V 50Hz 4.5kw | 380V 50Hz 8kw | |
| Air compression(self-prepared) | 0.6-0.8Mpa≥0.6m³/min | 0.6-0.8Mpa≥0.45m³/min | |
| Recycle water or circulating water consumption | 40-80L/h | 40-80L/h | |
| Overall Dimension(L*W*H)(including foundation) | 2900×750×1600 | 2900×750×1600 | |
| Dimension of Each Part | 1500×750×1600(front) | 1500×750×1600(front) | |
| 1400×750×1450(back) | 1400×750×1450(back) | ||
| Weight | About 1200kg | About 1200kg | |
Description
This machine is suitable for pack capsules and tablets which request high packaging standard to protect its quality and extend expiration date. This machine combined with two function:aluminum foil cold forming blister and PVC thermal forming blister. The two functions transform by changing modules.
Attention
When make ALU ALU product:
Turn off No.2(Heating box),change the feeder to shaking type feeder and change molds(Forming up and down
molds, sealing up and down molds, blanking up and down molds)
When make ALU PVC product: Turn on all of the stations.
The feeder also can changed by customer's requirement.
Finished blister format
