HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DTJ-V |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 /Set |
| Packaging Details: | packed in plastic bag and fixed in export wooden box |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 15 Sets per month |
| Features: | Can Filling Powder, Pellet, Micro-pills,granuals | Machine Name: | Semi-automatic Capsule Filling Machine |
|---|---|---|---|
| Capsule Size: | 000#,00#,0#,1#,2#,3#,4#,5# Are Available | Vacuum Pump: | Attached |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Driven Type: | Electric |
| Control System: | PLC Programming Control With Touch Screen | Certification: | CE |

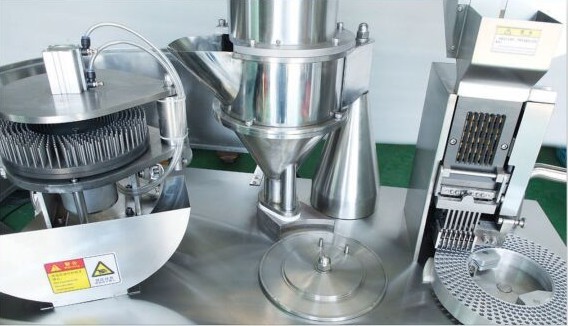

DTJ-V New type hot selling semi-auto Capsule Filling machine
Application
It is a special capsule filling machine which is suitable for capsule filling with powder or granules.
It is suitable for medium & small pharmaceutical factory,,hospital preparation lab.etc. The machine is adopted PLC programmable control system, the overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder or granules.
Technical Specification
| Capsule size | No. 000#-5# |
| Output | 10000-22500((Depending on the operation of skilled workers) |
| Power Source | 380V 3Phase 4.0kw |
| Vacuum pump | 40m3/h |
| Air compressor | 0.03m3/min 0.7Mpa |
| Machine dimensions:(mm) | 1140×700×1630 |
| Packing dimension:(mm) | 1650×800×1750 |
| Net weight:(Kg) | 430 |
| Gross weight:(Kg) | 500 |
Installing and Commission:
We will install and test the machine in best working condtion before shipment. If customer requires our technician to adjust the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, Local transportation costs, Lodging&Boarding expenses, salary shall be charged by you.
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all through the machine’s life.
