HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE |
| Model Number: | DPP-260 |
| Minimum Order Quantity: | 1Set |
| Price: | 20.000-30.000 usd/set |
| Packaging Details: | EXPORTED WOODEN BOX. |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 15 Sets Per Year |
| Product Name: | PLASTIC TRAY MAKING MACHINE | Output: | Max.50cutting/min |
|---|---|---|---|
| Max. Forming Area And Depth: | 250*180*30 | Pulling: | Step Motor Driving |
| Material Consist: | SS304/316 | Control: | PLC Control |
| High Light: | Plastic Plate Making Machine,Disposable Plastic Products Making Machine |
||
Introduction:

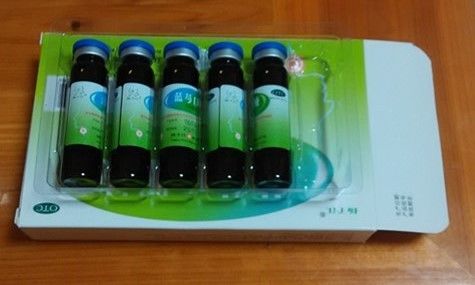

The machine is special for making plastic trays for packaging pharmaceutical industry, medical equipments, food industry, electronic industry and small hardware etc.
Feature:
The machine adopts compressed air blow forming, air clip pulling and automatic cutting with flat type structure design. The moulds of the machine adopts trapezoid style fixing easier for moving forward or backward makes much more simple on changing moulds.
Specifications
|
Item Model |
DPP-260 |
|
|
Cutting Frequency |
10-50times/min |
|
|
Max. Forming Area and Depth |
250×180×30 |
|
|
Pulling Length |
40-200 |
|
|
Packaging material(I.D.Φ75) |
PVC(mm) |
(0.15-0.8)×260×(Φ400) |
|
PTP(mm) |
(0.15-0.8)×260×(Φ400) |
|
|
PET(mm) |
(0.15-0.8)×260×(Φ400) |
|
|
Power |
380V 50Hz 4.5k |
|
|
Air compression(self-prepared) |
0.6-0.8Mpa≥0.5m³/min |
|
|
Recycle water or circulating water consumption |
40-80L/h |
|
|
Overall Dimension(L*W*H) |
2100×750×1450(including foundation) |
|
|
Weight |
About 600kg |
|
WARRANTY
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your products,the target capacity you want the machine meet. The more information the better.
