HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE |
| Model Number: | DPP-140A |
| Minimum Order Quantity: | 1Set |
| Price: | $9000-$11000/set |
| Packaging Details: | packed with plastic film then fixed in export wooded box |
| Delivery Time: | within 40 working days after received your payment |
| Supply Ability: | 10 Sets per month |
| Product Name: | Blister Packing Machine | Pulling: | Step Motor Driving |
|---|---|---|---|
| Material Consist: | SS304/316 | Control: | PLC Control |
| Detection System: | Mechanical Detection Or Visual Inspection | Plate Correspondence: | PRC System |
| Used: | Pill Or Capsule Or Tablet Or Food Etc. | ||
| High Light: | PVC Blister Packing Machine,Blister Packaging Machinery |
||

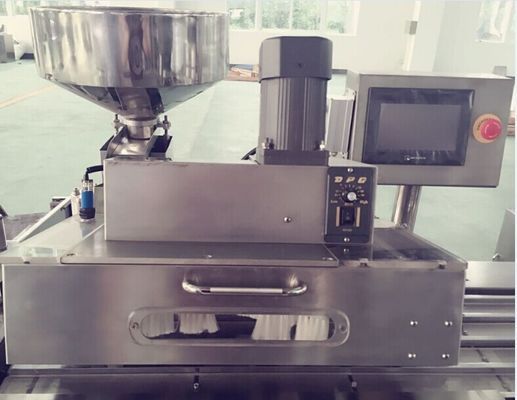

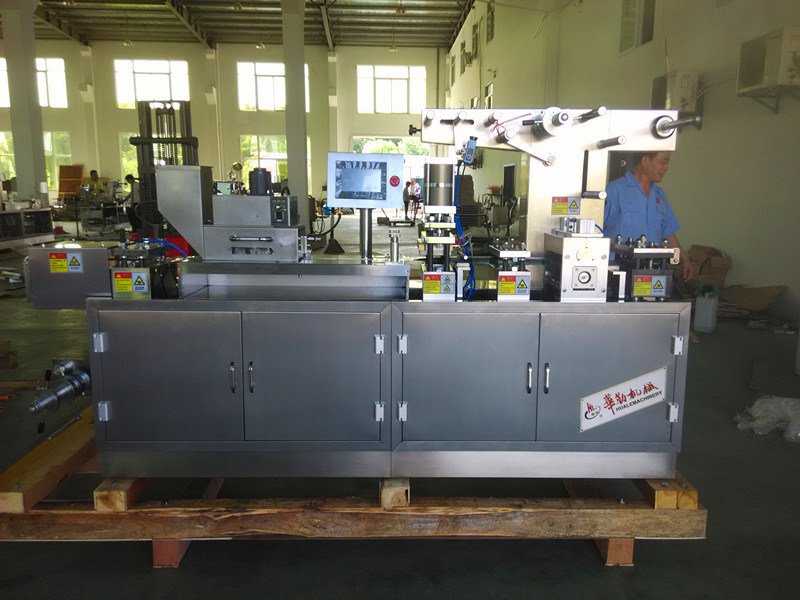

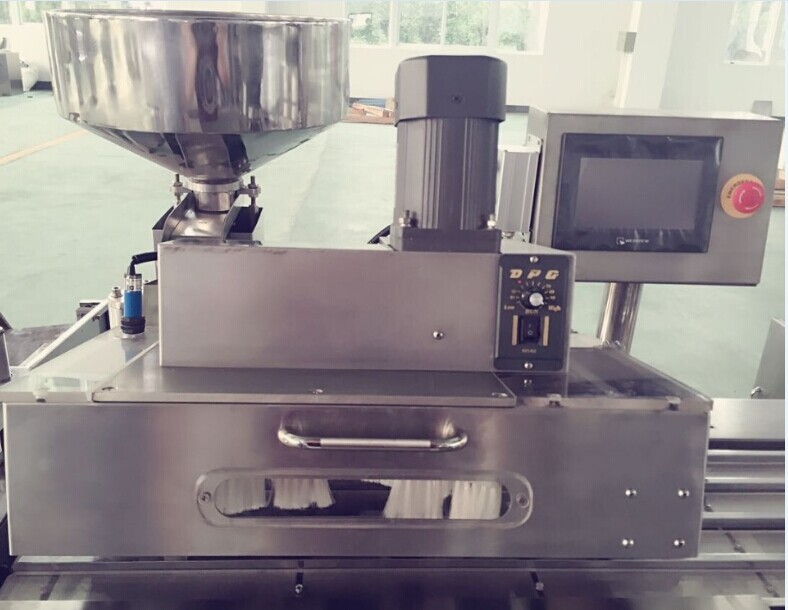

DPP - 140A Small Blister Pack Machines , Bubble Thermoforming Machine
(can change feeder)
FEATURES
Specifications
|
Model |
140A |
|
|
Machine Body |
Stainless Steel 304 |
|
|
Blanking frequency(times/min) |
15-45 |
|
|
Adjustable pulling length |
30-120mm |
|
|
Blister Plate Size |
Design According To Customers’ Requirements |
|
|
Max Forming area and depth(mm) |
140*110*15 (20 need Private custom) |
|
|
Air compressor (Don't provide) |
0.6-0.8Mpa ≥0.4m3/min |
|
|
Mould cooling (Recycle water or circulating water consumption) |
40-80 L/h |
|
|
Power supply (Three phase) |
380V/220V 50HZ 5.5KW (According to the customer need to select the voltage) |
|
|
Wrapper specification(mm) |
PVC |
160*(0.15-0.6)*(Φ400) |
|
Aluminum foil |
160*(0.02-0.035)*(Φ400) |
|
|
Overall Dimension(L*W*H)(including foundation) |
2400*650*1450 |
|
|
Dimension of Each Part |
1300*650*1250front) |
|
|
1050*650*1450(back) |
||
|
Weight |
About 800kg |
|
Description
OVERALL SKETCH
WARRANTY
