| Place of Origin: | China |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/GMP Standard |
| Model Number: | DPH-260 |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 15 Set per month |
| Product Name: | High Speed Alu PVC Blister Packing Machine | Output: | Max.200cutting/min |
|---|---|---|---|
| Control: | PLC Control |

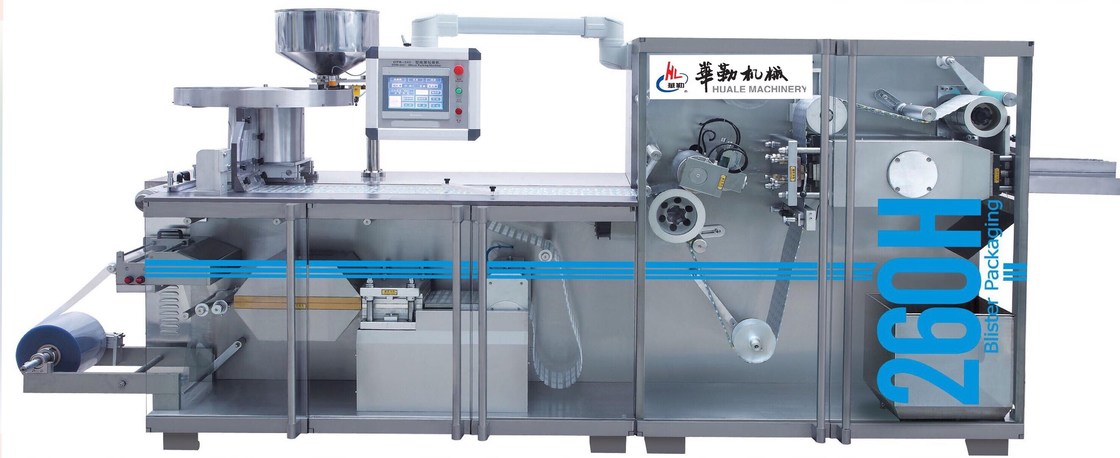

DPH-260 Roller-plate high speed blister packing machine roller sealing
Specifications
| Cutting frequency: | 40～200 times/minute, 300-500 blister sheets/minute |
| Max.forming area: | 245×250mm |
| Max.forming depth: | 12mm |
| Travel adjusting: | 150～250mm |
| Size of standard plate: | 80×57mm |
|
Width and thickness of PVC and PTP: |
PVC:260×0.15～0.30mm PTP:260×0.02～0.03mm |
| Power supply: | 380V 50HZ, main motor :1.1KW heating:10.8KW |
| Air Capacity : | ≥0.5m3/min |
| Cooling water: | Tap water or cycling water, 60L/H |
| Overall size: | 6030×1850×1110mm |
| Weight: | 3500kg |
