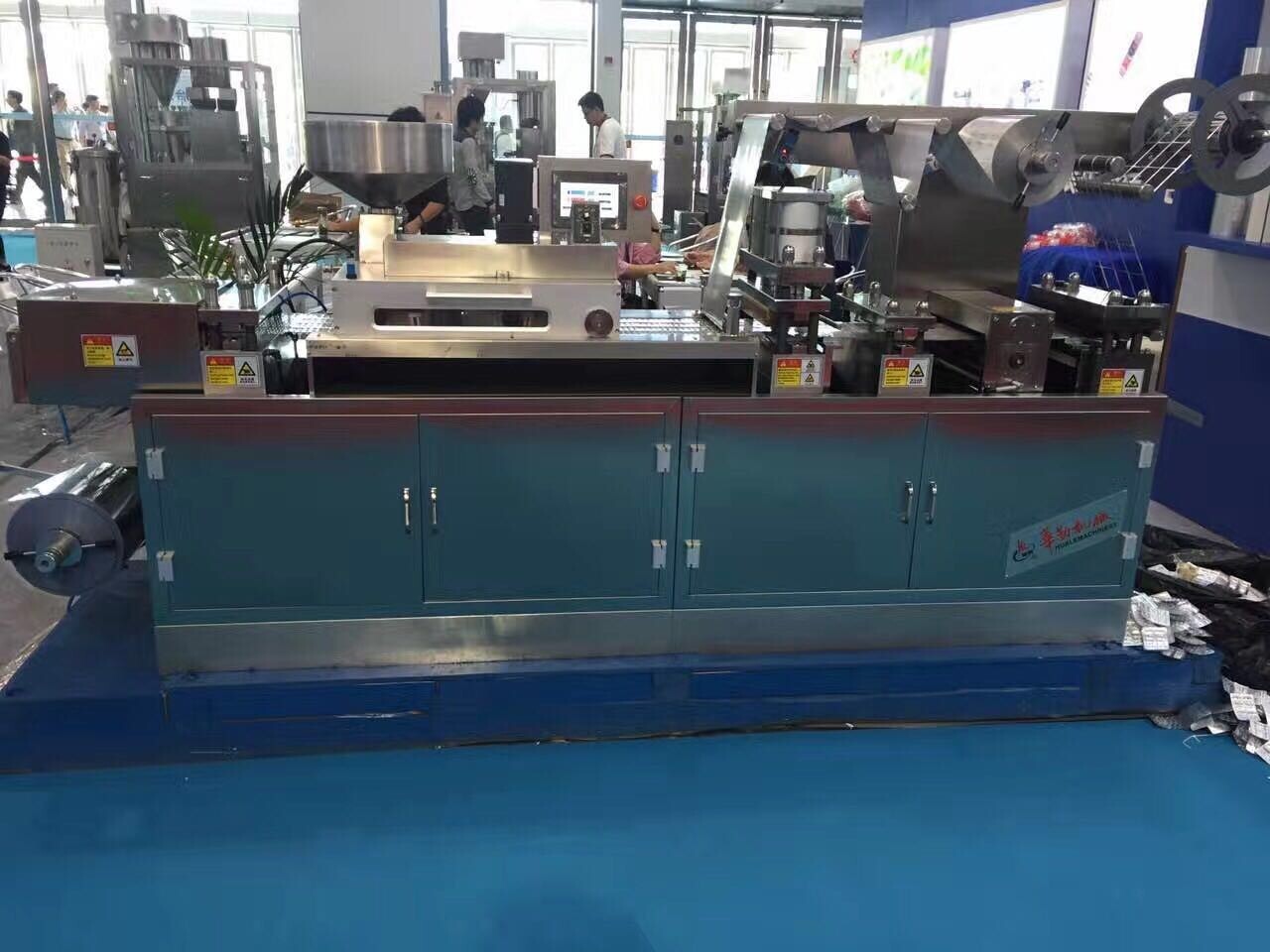

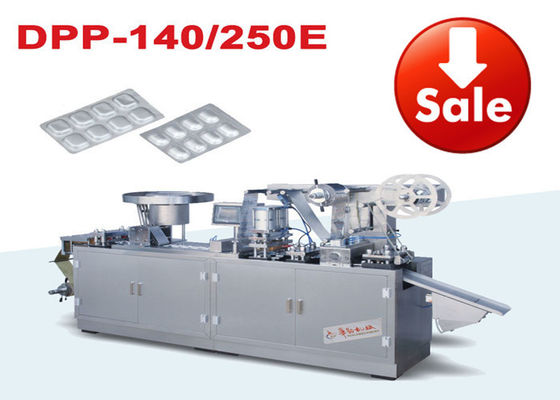

CE Approval Pharma Blister Packaging Machine Tablet Packing Machine
DPP-140E mini-type Bubble-cap packing machine is the smallest, lightest, cheapest and energy consumption Lowest packing equipment among the similar mode both in domestic and abroad.
This machine is widely suitable for new product preparation room of pharmaceutical section, small pharmaceutical factory, drug rest. It’s also suitable for aluminum Sculpture packing of capsule, sugarcoating tablet and plain tablet medicine or improvement packing of special specification.
Performance and characteristics
1. Vibration feeder and crisp remover can effectively remove the powder and crisps inside medicine.
2. Auto counting, horizontal perforation, slitting, waster-side cutting, printing batch number and auto punch etc functions can be achieved automatically in one process.
3. The diameter of heat pressing cam can be changed from 110 to 140 mm.
4. The rotation speed of the material controlling cam is equal to heat pressing cam, and the cams isodisperse is equal to medicament nest of heat pressing cam. Therefore it can have the distance from the plate edge the medicament nest and the one between the central medicament nest be equal.
5. The punch adopts electronic checking signal and PLC programs. It can change the number of granules at any time in the horizontal direction of the plate, making the user free to change the plates without replacing the moulds.
6. It can be equipped with an additional cursor tracking and registering plate system, inking wheel printer to have the products printed beautifully and uniformly, upgrading the products. The digit numbers are stamped more clearly.
Stainless Steel 304/316
Adjustable pulling length
Blister Plate Size
Design According To Customers’ Requirements
Max Forming area and depth(mm)
(Recycle water or circulating water consumption) 40-80 L/h
Power supply(Three phase)
380V/220V 50HZ 3KW
380V/220V 50HZ 5.5KW
Wrapper specification (mm)
Alu Alu Foil
Dimension of Each Part
Notes: the feeder can be changed according to customer's requirement.
