| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/ISO9001 |
| Model Number: | DPP-260 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 20 Set per month |
| Product Name: | Automatic Plastic Tray Packing Machine | Punching Frequency: | 10-50 Cutting/ Min |
|---|---|---|---|
| Packaging Material: | PVC PE PET | Power: | 380V 50Hz 4.5Kw |
| Max. Forming Area And Depth: | 250*180*30 | Applications: | Pharmaceutical Industry, Food Industry, Electronic Industry And Small Hardware. |
| Weight: | About 600kg | ||
| High Light: | Plastic Plate Making Machine,Disposable Plastic Products Making Machine |
||
Name: Automatic PVC Disposable Plates Tray Making Machine For Medicine small electrionic
Introduction:

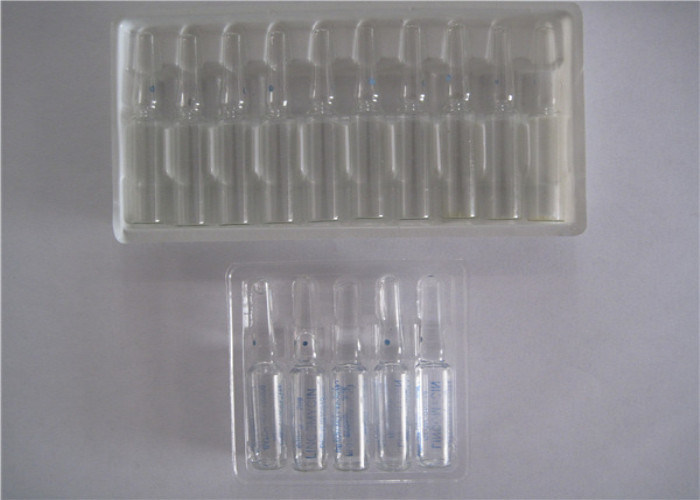

This machine is special for making plastic trays for different smaller items, such as electronic cell , smaller hardware and small sized food so on.
Performance and characteristic
TECHNICAL PARAMETER
|
Item Model |
DPP-260 |
|
|
Cutting Frequency |
10-50times/min |
|
|
Max. Forming Area and Depth |
250×180×30 |
|
|
Pulling Length |
40-200 |
|
|
Packaging material(I.D.Φ75) |
PVC(mm) |
(0.15-0.8)×260×(Φ400) |
|
PTP(mm) |
(0.15-0.8)×260×(Φ400) |
|
|
PET(mm) |
(0.15-0.8)×260×(Φ400) |
|
|
Power |
380V 50Hz 4.5k |
|
|
Air compression(self-prepared) |
0.6-0.8Mpa≥0.5m³/min |
|
|
Recycle water or circulating water consumption |
40-80L/h |
|
|
Overall Dimension(L*W*H) |
2100×750×1450(including foundation) |
|
|
Weight |
About 600kg |
|
