HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/ISO9001 |
| Model Number: | NJP-400C |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 50 working days after received your payment |
| Supply Ability: | 20 Set per month |
| Product Name: | NJP 400C Automatic Capsule Filling Machine | Output: | Max.400 Capsules/MIN |
|---|---|---|---|
| Material Consist: | SS 304/316 | Control: | SIEMENS PLC Control |
| Capsule Size: | No. 00#-4# | Vacuum Pump: | Water Circulating Vacuum Pump |
| Power Supply: | 380V/220V 50Hz 8KW | ||
| High Light: | Capsule Filling Equipment,Capsule Filler Machine |
||

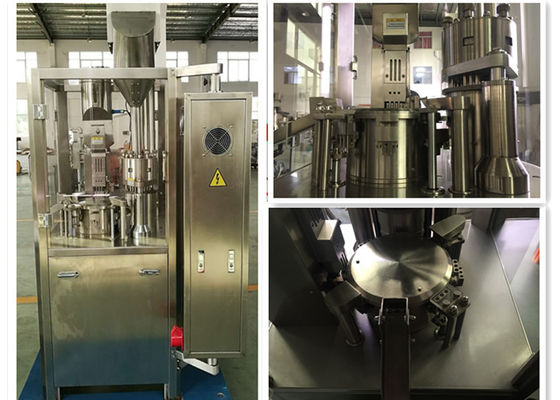

Auto Powder Pellets Hard Capsules Filling Machine Fully Enclosed Type
Appliaction
This fully automatic capsule filling machine is suitable for capsule size 00#-4# which applied for medium & small pharmaceutical factory, hospital preparation lab, etc.
Specifications
|
Item |
NJP-400C |
|
Output |
400capsules/min |
|
Bores |
18 |
|
Rate of capsule filling |
99% |
|
Appropriate for capsule |
00#-4# |
|
Total Power |
8kw |
|
Noise standard: |
﹤75dB(A) |
|
Weight |
700kg |
|
Dimension |
700*900*1800mm |
|
Hard Capsule Filling is suitable for filling the capsule of powdery and granular drugs. Hard Capsule Filling adopts multi-bore dosing, intermittent motion and frequency conversion. It can automatically completely capsule feeding, separating, filling, (waste capsule rejecting), capsule closing, finished product discharging and die cleaning. |
|
Performace and characteristic
Small volume, low energy consumption, fast mould change, convenient operating, easy cleaning.
The rate of capsule filling is 99%
Shelter are fixed around the dose pan which can recycle the power ,reduce the dust on the working bench.
The turning-around parts are in full closure, have excellent lubricating conditions.
Adopt the man -machine interface, including PLC programming controller, appear the capacity of per minutes, total output, dynamic empty capsules and medicine powder condition, alarm for capsule lacking, and automatically stop for lacking of medicine power, breakdown diagnosing display.
Welcom to visit our factory and cooperate with us!
