HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | China |
|---|---|
| Brand Name: | HUALE MACHINERY |

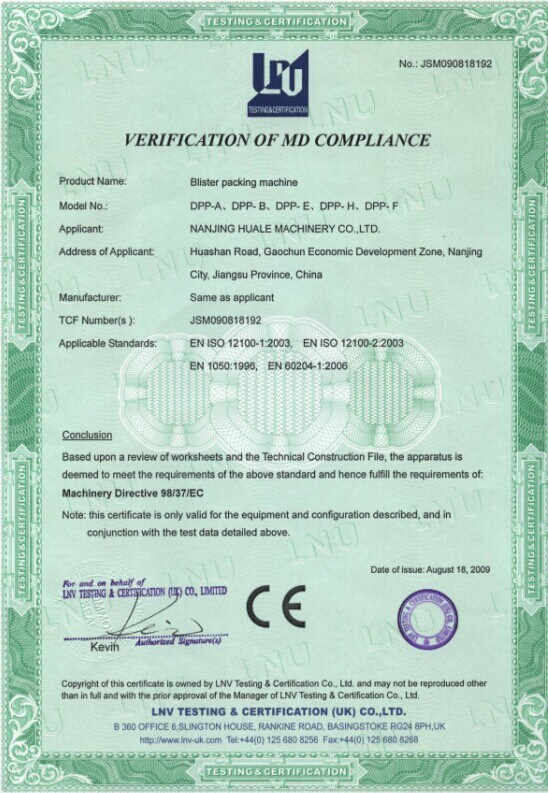

| Certification: | CE/GMP Standard |
| Model Number: | DPP-88H |
| Minimum Order Quantity: | 1Set |
| Price: | 5000-6000 usd/set |
| Packaging Details: | 1.The machine will not be shaking in transport with wooden fixed. 2.The machine will not be affected with damp in transport with packed with PE plastic bags. 3.Easy shaking station will fixed with hard rope. 4.Long machine will packed separately. 5.If ther |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 15 Set per month |
| Product Name: | Small Blister Packing Machine | Max. Forming Area And Depth: | 100*90*15 |
|---|---|---|---|
| Pulling: | Step Motor Driving | Material Consist: | SS304/316 |
| Control: | PC Circuit Panel | Detection System: | Mechanical Detection Or Visual Inspection |
| Plate Correspondence: | PRC System | Cooling: | 30-50L/h |
| High Light: | PVC Blister Packing Machine,Blister Packing Equipment |
||

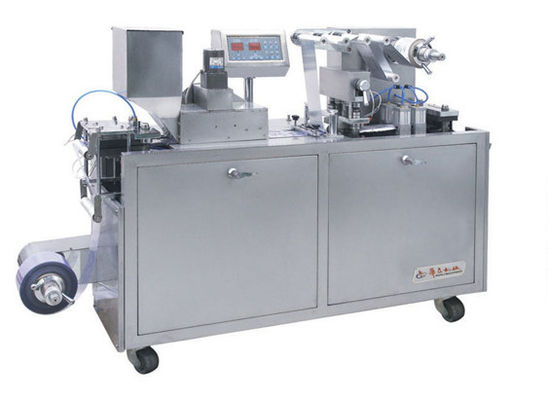

Mini Automatic Capsule Blister Packing Machine DPP-88 Laboratory Packing Machine
Specifications
Application
Blister Machine DPP88 is ideal for producing small batches of high quality blister packs in:
Pharmaceutical Research and Development laboratories, Clinical trials, Stability studies, Package development, Marketing, samples, Pharmaceutical production and packaging departments.
Techincal Parameter
|
Item Model |
DPP-88H |
|
|
Cutting Frequency |
10-30times/min |
|
|
Max. Forming Area and Depth |
100×90×15mm |
|
|
Adjustable Scope of Travel |
40-100mm |
|
|
Packaging material(I.D.Φ75) |
PVC(mm) |
(0.15-0.4)×110×(Φ300) |
|
PTP(mm) |
(0.02-0.15)×110×(Φ250) |
|
|
PET(mm) |
(50-100)g/m2×110×(Φ300) |
|
|
Power |
220V 50Hz 4.5k |
|
|
Air compression(self-prepared) |
0.6-0.8Mpa≥0.3m³/min |
|
|
Recycle water or circulating water consumption |
30-50L/h |
|
|
Overall Dimension(L*W*H) |
1700×450×1100(including foundation) |
|
|
Weight |
About 300kg |
|
Description
1. Pulling length can be adjusted. Mold is located by located groove so that it's easy to change mold. The
machine heats the PVC through conduction and forms it through pressing and frothing.
2. The material is fed automatically. The mold and feeder can be designed as user's requirements.
3. The heating molds will automatically separate when the machine stops, which contributes to protect the material from heated moulds.
4. The machine comes with Perforation embossing, batch number embossing and wasted material rewinding.
5. Air Clip forward and backward cycling running for pulling the packing material.
6. Speed is controlled by inverter while operation on touch panel.
