HUALE MACHINERY CO.,LTD
MANUFACTURING HIGH QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
| Place of Origin: | China |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE/GMP Standard |
| Model Number: | DPP-350A |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | 1.The machine will not be shaking in transport with wooden fixed. 2.The machine will not be affected with damp in transport with packed with PE plastic bags. 3.Easy shaking station will fixed with hard rope. 4.Long machine will packed separately. 5.If ther |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 15 Set per month |
| Capacity: | Max.45 Cuttings/min | Usage: | Chewing Gum,cookies,etc |
|---|---|---|---|
| Tear Line: | Depends On | Speed: | 45cutting/min |
| Batch Number: | Depends On | Feeder: | Disc Brush |
| Molds: | Easy Change | Circulatory System: | Water |
| Cooling: | Air Cooling | ||
| High Light: | PVC Blister Packing Machine,Blister Packing Equipment |
||

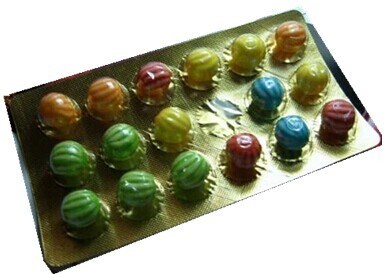

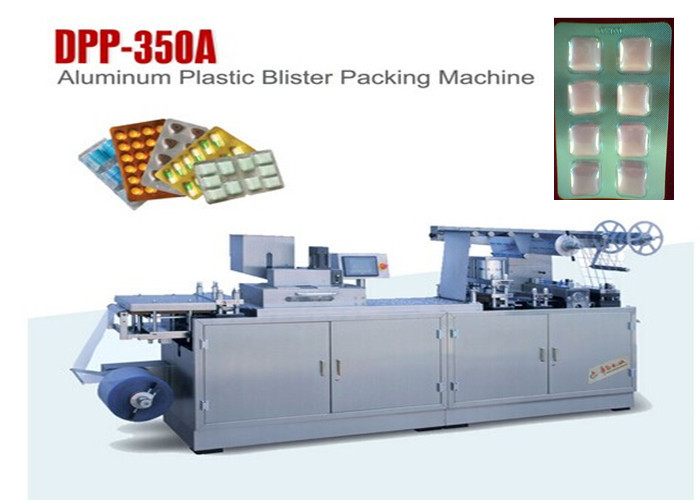

Alu PVC Chewing Gum Automatic Blister Packing Machine PLC Control
It is the ideal packing equipment with convenience operation, full purpose function. The product passed the CE certification and meet the GMP requirement.
Description
1.Use touch screen,PLC
2.Use servo motor pulling
3.Cylinder hot sealing,extend machine’s life
4.Automatic feeder
Main Performance and Feature:
1. With frequency step-less speed regulating, the punching frequency reaches 15-45times per minute.
2. The stroke can be adjusted within 30-130mm, which is easy to adjust with correct synchronization.
3. Adopts plate-type mould, positive-pressure forming, featured by batch number printing,creasing and cutting,aluminum-foil/plastics automatic feeding, automatic alarm for broken—piece and finished-piece and automatic stop etc.
4. Equipped with one set general feeder,which filling percentage reaches 99.5 and The feeder is fitted with dust exhaust joint so can overcome the dust problem during feeding.
5.Adopts registering matching heating so that can reduce the heat energy loss of heater to the least, and the required temperature will be greatly reduced.
6. This machine has small volume, light weight, cramped structure, easy operation and maintenance.
TECHNICAL PARAMETER
| Item Model | DPP-350A | |
| Cutting Frequency(ideal sizes:80*57mm) | 15-45 cutting/min | |
| Max. Forming Area and Depth | 350×130×15mm | |
| Adjustable Scope of Travel(mm) | 30-140mm | |
| Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.6)×350×(Φ400) |
| PTP(mm) | (0.02-0.15)×350×(Φ400) | |
| Paper(mm) |
(50-100)g/㎡ ×350×(Φ400) |
|
| Power | 380V 50Hz 9.5kw | |
| Air compression(self-prepared) | 0.6-0.8Mpa≥0.6m³/min | |
| Recycle water or circulating water consumption | 40-80L/h | |
| Overall Dimension(L*W*H)(including foundation) | 3650×850×1700mm | |
| Dimension of Each Part | 1850×850×1700(front) | |
| 1800×850×1650(back) | ||
| Weight | About 2000kg | |
