| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUALE MACHINERY |
| Certification: | CE ISO9001 |
| Model Number: | DXH-200WB |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | WOODEN BOX. |
| Delivery Time: | 50 working days after received your payment. |
| Supply Ability: | 10 Set per month |
| Machine Name: | Blister Cartoning Machine | Output: | Max.200 Boxes/min |
|---|---|---|---|
| Box Dimension Range: | (55-200)mm*(20-100)mm*(14-70)mm | Material Consist: | Stainless Steel 304 |
| Control: | PLC Control | Capacity Of Air Compressor: | ≥0.6Mpa |
| Power Supply: | 380V/220V 50HZ 2.2KW | ||
| High Light: | Auto Cartoning Machine,Automatic Carton Packing Machine |
||

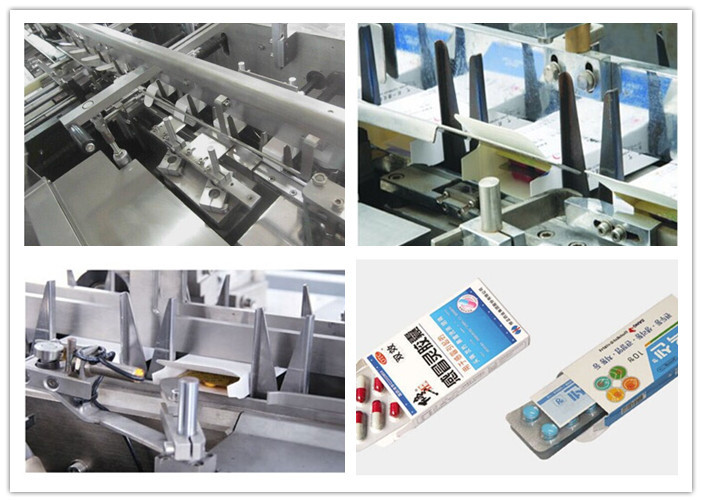

380v 220v Blister Box Packaging Carton Sealer Machine Plc Control
Description
This is a newly designed machine based on domestic and abroad advanced technology which combined Mechanical, electrical, pneumatic and optical together.
Application
The machine is suitable for packaging different objects with automatic leaflet inserting, carton opening, object cartoning, batch number embossing and carton sealing, such as ALU-PVC blister plate, bottles, cosmetics, playing cards, electronics and daily use hardware, etc.
The machine can work isolated or connecting to other packaging machines as a production line.
Techincal Parameters
|
Max encasing speed |
200box/min |
|
|
Carton |
Quality Requirement |
250-350g/m2 |
|
Dimension Range (L×W×H) |
(55-120) ×(20-100) ×(14-70)mm |
|
|
leaflet |
Quality Requirement |
50-70g/m2 |
|
Folded Leaflet Specification |
(80-240)X(90-190)mm |
|
|
Folding Range |
1-4 fold |
|
|
Air Consumption |
>0.3m3/min 0.6mpa |
|
|
Motor Power |
2.5kw 380V 50HZ |
|
|
Machine Dimension (L×W×H) |
4300x1440x1600mm |
|
|
Machine Net Weight |
About 1500kg |
|
