Flat Type 250E Alu Alu Blister Packing Machine For Medicine Double Aluminum Packaging

China Flat Type 250E Alu Alu Blister Packing Machine For Medicine Double Aluminum Packaging supplier

Large Image :  Flat Type 250E Alu Alu Blister Packing Machine For Medicine Double Aluminum Packaging

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DPP-250E

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: $14000-$20000/set
Packaging Details: packed with plastic film then fixed in export wooded box
Delivery Time: 40 working days upon receipt your deposit
Supply Ability: 20 Set per year
Detailed Product Description
Machine Name: Alu Aluminum Blister Packing Machine Driven Type: Electric
Pulling Motor: Step Motor Or Servo Motor Pulling Length: Adjustable
Feeder: Automatic Feeder Can Customized


Flat Type 250E Alu Alu Blister Packing Machine For Medicine Double Aluminum Packaging


 Feature

  • Specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute.
  • Flat plate structure, positive pressure and convenient to operate.
  • Small and the stroke Length is adjustable.
  • Suitable for AL/AL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.



Specifications


Double FunctionALU-ALUALU-PVC
Cutting Frequency(ideal sizes:80*57mm)15-30 cutting/min20-45 cutting/min
Max. Forming Area and Depth250×120×12mm150×110×15mm
Adjustable Scope of Travel(mm)30-120mm30-120mm
Packaging material(I.D.Φ75)PVC(mm) (0.15-0.4)×260×(Φ400)
PTP(mm)(0.02-0.15)×260×(Φ250)(0.02-0.15)×260×(Φ250)
Alu Alu Foil(0.14-0.18)×260×(Φ400)
Paper(mm)

(50-100)g/㎡
×260×(Φ300)

Power380V 50Hz 4.5kw380V 50Hz 8kw
Air compression(self-prepared)0.6-0.8Mpa≥0.6m³/min0.6-0.8Mpa≥0.45m³/min
Recycle water or circulating water consumption40-80L/h40-80L/h
Overall Dimension(L*W*H)(including foundation)2900×750×16002900×750×1600
Dimension of Each Part1500×750×1600(front)1500×750×1600(front)
1400×750×1450(back)1400×750×1450(back)
WeightAbout 1200kgAbout 1200kg



Performance and characteristic

1. Vibration feeder and crisp remover can effectively remove the powder and crisps inside medicine.
2. Auto counting, horizontal perforation, slitting, waster-side cutting, printing batch number and auto punch etc functions can be achieved automatically in one process.
3. The diameter of heat pressing cam can be changed from 110 to 140 mm.
4. The rotation speed of the material controlling cam is equal to heat pressing cam, and the cams isodisperse is equal to medicament nest of heat pressing cam. Therefore it can have the distance from the plate edge the medicament nest and the one between the central medicament nest be equal.
5. The punch adopts electronic checking signal and PLC programs. It can change the number of granules at any time in the horizontal direction of the plate, making the user free to change the plates without replacing the moulds.
6. It can be equipped with an additional cursor tracking and registering plate system, inking wheel printer to have the products printed beautifully and uniformly, upgrading the products. The digit numbers are stamped more clearly.

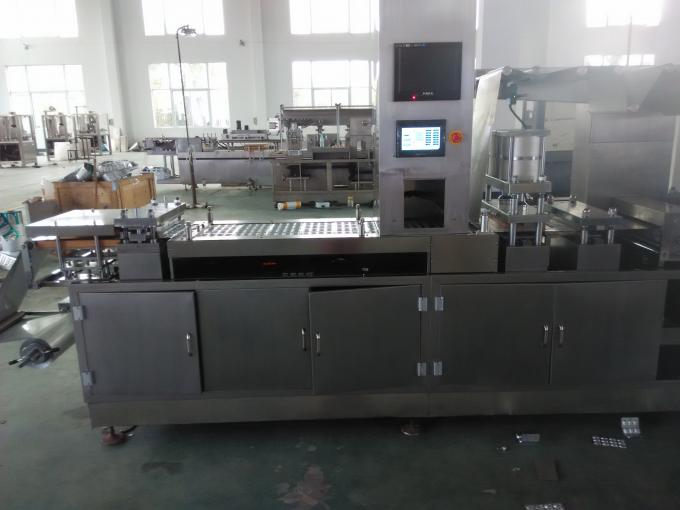

Flat Type 250E Alu Alu Blister Packing Machine For Medicine Double Aluminum Packaging

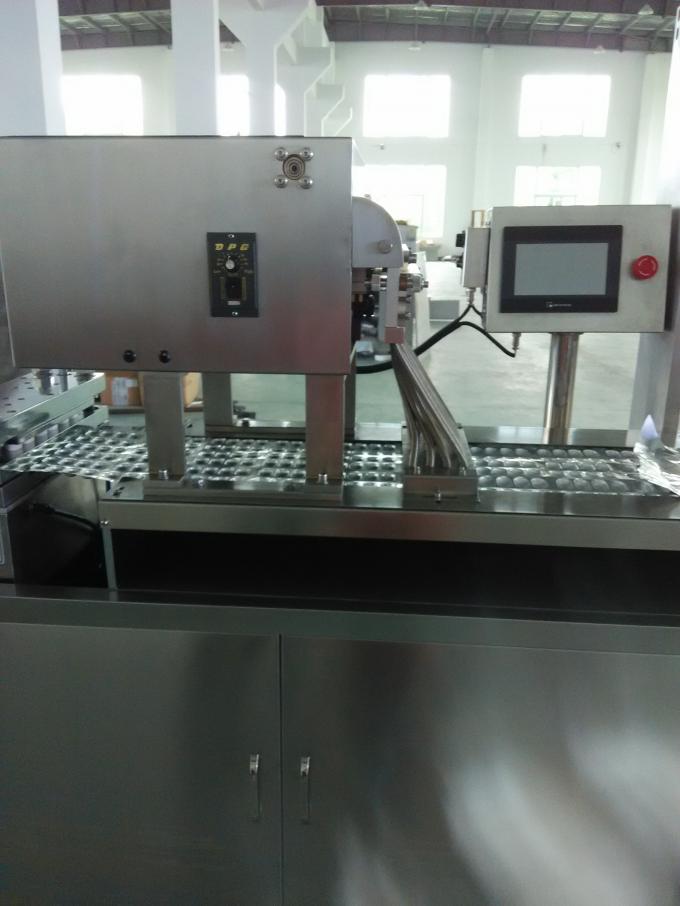

Flat Type 250E Alu Alu Blister Packing Machine For Medicine Double Aluminum Packaging
Flat Type 250E Alu Alu Blister Packing Machine For Medicine Double Aluminum Packaging
