Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises

China Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises supplier
Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises supplier Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises supplier Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises supplier Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises supplier Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises supplier

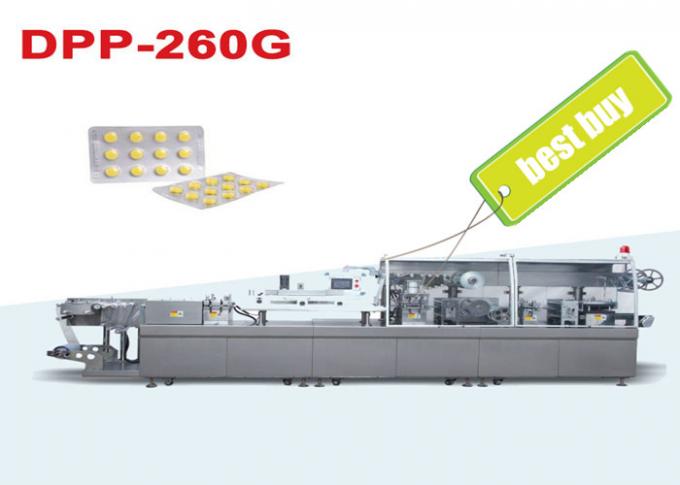

Large Image :  Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises

Product Details:

Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPP-260G

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Product Name: High Speed Blister Packing Machine Output: Max.100cutting/min
Max. Forming Area And Depth: 250*200*20 Pulling: Double Servo Motor Driving
Material Consist: SS304/316 Control: PLC Control
Detection System: Mechanical Detection Or Visual Inspection Used: Pill Or Capsule Or Tablet
Plate Correspondence: PRC (print Register Control) System

Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises







Introduction:



This high speed aluminum plastic packing machine is our advanced equipment under update improvement. It is the best packing equipment for large and medium size pharmaceutical enterprise and food supplement industry.

the machine adopts newly designed Speed adjustable Double-Hopper System feeder with high precision optical control for high efficiency feeding. It is suitable for different blister sheet style and irregular shape material feeding(special feeder can be designed according to client’s request)

.

Technical Parameters:



Item Model DPP-260G
Cutting Frequency(ideal sizes:80*57mm) 20-100 cutting/min
Max. Forming Area and Depth 250×200×20
Adjustable Scope of Travel(mm) 30-220mm
Packaging material(I.D.Φ75) PVC(mm) (0.15-0.4)×260×(Φ400)
PTP(mm) (0.02-0.15)×260×(Φ250)
Paper(mm)

(50-100)g/㎡

×260×(Φ300)

Power 380V 50Hz 14kw
Air compression(self-prepared) 0.6-0.8Mpa ≥0.25m³/min
Recycle water or circulating water consumption 60-100L/h
Overall Dimension(L*W*H)(including foundation) 5600×900×1750
Dimension of Each Part

2300×720×1600(front)

1500×900×1750(middle)

1800×900×1750(back)
Weight About 2200kg





Description:

  1. The machine used of closed structure, new safety protection design. Adopts top brand PLC controller with touch screen displayed in Double Languages, Frequency inverter for speed control, servo traction which can ensure the length of blister traction adjustable within the range.
  2. The machine comes with PVC quick installation and complete set guide way.
  3. With thermal temperature control and inspection, main machine over load protection, PVC and PTP packing material position inspection, feeder material position inspection, failure automatic debug and alarm, automatic protection and stop running.
  4. The machine adopts newly designed Speed adjustable Double-Hopper System feeder with high precision optical control for high efficiency feeding. It is suitable for different blister sheet style and irregular shape material feeding (Special feeder can be designed according client’s requirement.)
  5. All working station of the machine adopts flat type structure with Mould trapezoid style fixing, forward and backward moveable makes much more easier and safer while operation and changing mould.
  6. It adopts Contact style preheating, compressed air blow forming, upper and downer mould dot sealing, double servo pulling system, double Print Register Controlling system makes perfect packaging.
  7. The cutting edge between blisters are only 1mm, it saves more packaging material and protect our environment.
  8. Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
  9. The machine has been designed into separated body (three parts) which can be disassembled for easier move into lifts or workshops.



MACHINE SKETCH



Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises

Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises

Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises

Package

 Aluminum Plastic Pharmaceutical Blister Packaging Machines In Enterprises





WARRANTY

  1. Technical Support(24 hours on line support by emails, skype, MSN, mobile).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.
