Pill Alu Alu Blister Packing Machine Capsule And Tabelts Use

China Pill Alu Alu Blister Packing Machine Capsule And Tabelts Use supplier

Large Image :  Pill Alu Alu Blister Packing Machine Capsule And Tabelts Use

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DPP-250E

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD $1000-18000/set
Packaging Details: packed in plastic bag and fixed in export wooden box
Delivery Time: 30 working days after received your payment.
Supply Ability: 15 Set per month
Detailed Product Description
Product Name: Alu Alu Blister Packing Machine Output: Max. 45 Cutting/min
Max. Forming Area And Depth: 250*120*12mm Pulling: Step Motor Driving
Punch Pin: PTFE(High Temperature Resistant, Non Stick Coating) Detection System: Mechanical Detection Or Visual Inspection
Used: Alu-PVC Blister And Alu-Alu Blister



Double Aluminum foil blister packaging equipment for pill, capsule and tabelts high sealing packaging

Description

  • Enter the pulling length in the touch-screen based on your plate size. Pulling length can be adjusted .Step motor is adopted on the machine for precise controlling the pulling length and saving material.
  • Easy to change mold because the mold is fixed by located groove.
  • when it working, the machine heats the packing material (PVC) through heated board and forms by compressed air frothing. The machine also can use cool forming moulds to make the composite aluminum foil formed.
  • Adopt the interface of human-machine and PLC control system. Speed can be controlled by inverter.
  • Mold and feeder can be designed according to your requirement.
  • The machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  • The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.

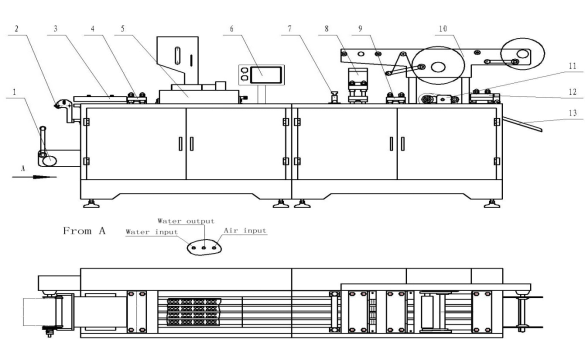

OVERALL SKETCH



Pill Alu Alu Blister Packing Machine Capsule And Tabelts Use



1: PVC feeder  2: PVC transporting roller  3: Heating box 4: Forming mechanism(the material of  punch head  is PTFE)

5: Medicine feeder(The manual feeding without this station)

6: Touch-screen 7: PTP transporting roller

8: Heat-sealing mechanism 9: Trace-pressing mechanism

10: PTP feeding mechanism & scrap-collector 11: Tow mechanism

12: Blanking mechanism 13: Finished product output



Perfomance and Characteristic

The machine combine with two functions, it can be used as Aluminum Aluminum blister packing machine and Aluminum plastic blister packing machine by changing moulds.

Performance as Aluminum Aluminum blister packing machine

  1. The machine uses a special cold forming mould to make Aluminum foil formed.
  2. The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 30 to 150mm which expand application range of the machine.
  3. Speed is shifted by step-less transducer. Blanking frequency is 15-30times/min.
  4. Mould and feeder can be designed according to customer ‘s request.

      5.gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.

    6.The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.





Performance as Aluminum PVC blister packing machine

  • The machine use heating board to make PVC’s temperature up tp 100℃ and use compressed air to make PVC formed.
  • The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 150mm which expand application range of the machine.
  • Speed is shifted by step-less transducer. Blanking frequency is 20-45times/min.
  • Mould and feeder can be designed according to customer ‘s request.
  • the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  • The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.

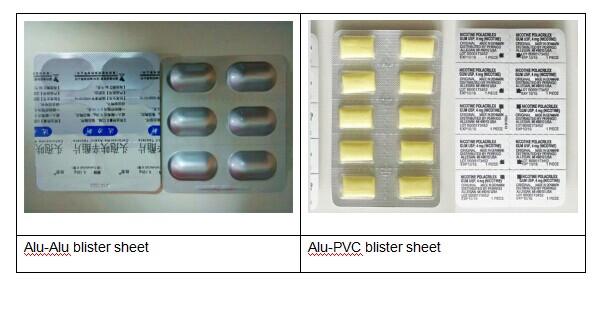

  • Blister products

BLISTER PRODUCTS

Pill Alu Alu Blister Packing Machine Capsule And Tabelts Use

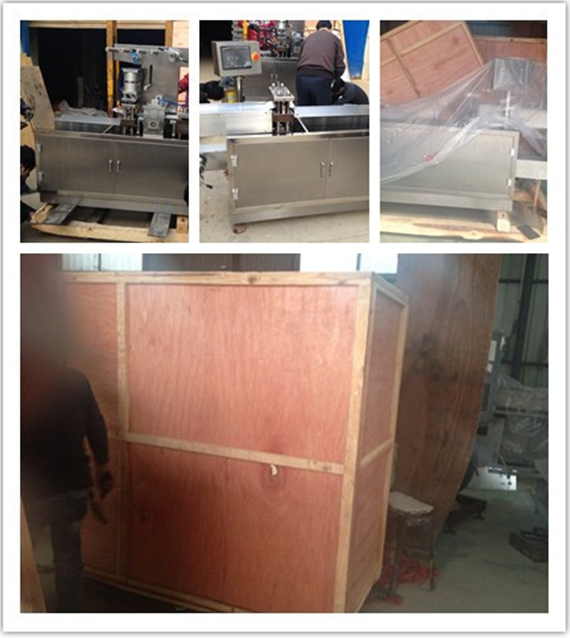

PACKAGE

  • The machine will not be shaking in transport with wooden fixed.
  • The machine will not be affected with damp in transport with packed with PE plastic bags.
  • Easy shaking station will fixed with hard rope.
  • Long machine will packed separatly.
  • If there are strict requirements, chassis can use iron girders.

Pill Alu Alu Blister Packing Machine Capsule And Tabelts Use
