Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister

China Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister supplier
Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister supplier Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister supplier Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister supplier Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister supplier Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister supplier

Large Image :  Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DPP-140E

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD $1000-15000/SET
Packaging Details: packed in plastic bag and fixed in export wooden box
Delivery Time: 30 working days after received your payment.
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Product Name: Small Alu Alu Blister Packing Machine Output: Max.30 Cutting/min
Max. Forming Area And Depth: 140*110*12 Pulling: Step Motor Driving
Punch Pin: PTFE(High Temperature Resistant, Non Stick Coating) Detection System: Mechanical Detection Or Visual Inspection
Used: Alu PVC Blister And Alu-Alu Blister



Cold Forming Aluminium Foil Blister Packing Machine Factory Price





Description



This machine combine with two functions, it can be used as Aluminum Aluminum blister packing machine and Aluminum plastic blister packing machine by changing moulds.



DPP-140E



Model

ALU ALU

ALU-PVC

Machine Body

Stainless Steel 304/316

Blanking frequency(times/min)

15-30

20-45

Adjustable pulling length

30-120mm

Blister Plate Size

Design According To Customers’ Requirements

Max Forming area and depth(mm)

140*110*12

140*110*15

Air compressor(self-prepared)

0.6-0.8Mpa  ≥0.4m3/min

Mould cooling

(Recycle water or circulating water consumption)

40-80 L/h

Power supply(Three phase)

380V/220V 50HZ 3KW



380V/220V 50HZ 5.5KW



Wrapper specification (mm)

Alu Alu Foil

150*(0.14-0.18)*(Φ400)

PVC

150*(0.15-0.4)*(Φ400)

Aluminum Foil:150*(0.02-0.15)*(Φ400)

Overall Dimension(L*W*H)

(including foundation)

2400*650*1450

Dimension of Each Part

1350*650*1250(front)

1050*650*1450(back)

Weight

About 800kg



Performance as Aluminum Aluminum blister packing machine



  • The machine adopt a special cold forming module to make Aluminum foil formed.
  • The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
  • Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
  • Mould and feeder can be designed according to customer ‘s request.
  • the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  • The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.



Performance as Aluminum PVC blister packing machine

  • The machine use heating board to make PVC’s temperature up to 100℃ and use compressed air to make PVC formed.
  • The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
  • Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
  • Mould and feeder can be designed according to customer ‘s request.
  • The machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  • The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.

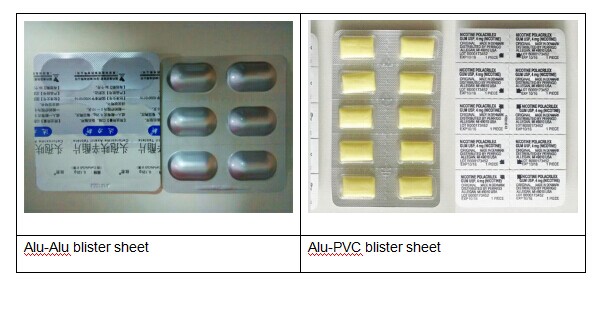

BLISTER PRODUCTS

Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister

Certificate

Cold Forming Aluminium Foil Alu Alu Blister Packing Machine For Alu PVC Blister



WARRANTY

  1. Technical Support(24 hours on line trademanager, skype, MSN, mobile).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.
