High Packing Standard Small Automatic Aluminum Blister Packaging Machine

China High Packing Standard Small Automatic Aluminum Blister Packaging Machine supplier
High Packing Standard Small Automatic Aluminum Blister Packaging Machine supplier High Packing Standard Small Automatic Aluminum Blister Packaging Machine supplier High Packing Standard Small Automatic Aluminum Blister Packaging Machine supplier High Packing Standard Small Automatic Aluminum Blister Packaging Machine supplier

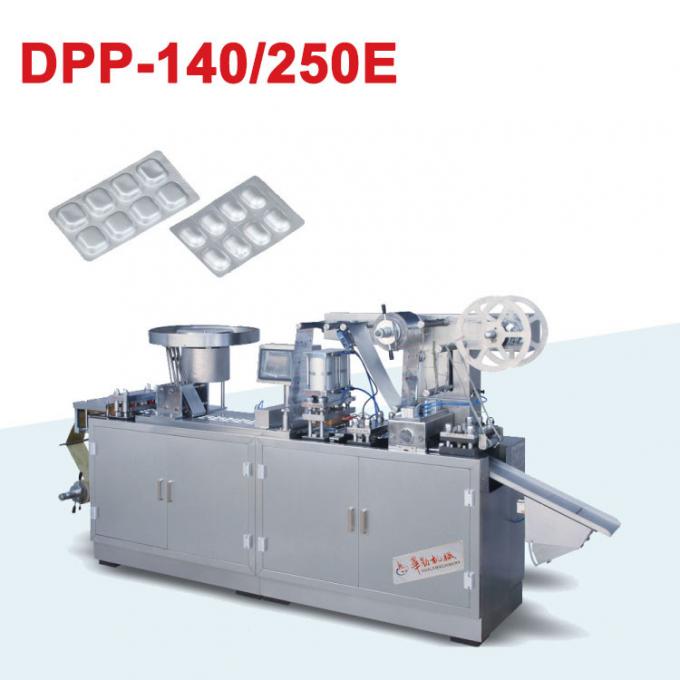

Large Image :  High Packing Standard Small Automatic Aluminum Blister Packaging Machine

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DPP-140E

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: WOODEN BOX.
Delivery Time: 30 working days after received your payment.
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Product Name: Small Alu Alu Blister Packing Machine Output: Max.30 Cutting/min
Max. Forming Area And Depth: 140*110*12 Pulling: Step Motor Driving
Punch Pin: PTFE(High Temperature Resistant, Non Stick Coating) Detection System: Mechanical Detection Or Visual Inspection

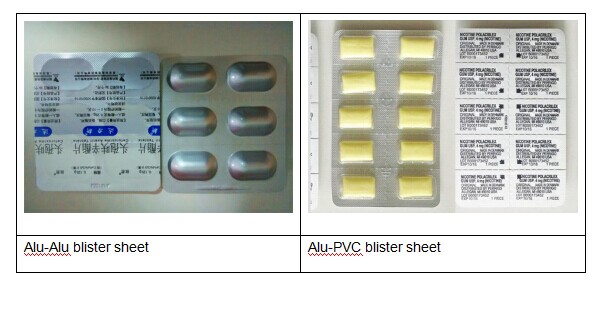

Used: Alu PVC Blister And Alu-Alu Blister



High Packing Standard Small Automatic Aluminum Blister Packaging Machine





Description



  • Main motor adopts inverter speed controlling system.
  • It adopts newly designed double hopper feeding system with high precision optical control for
  • automatic
  • and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.
  • (the feeder
  • Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing
  •  and
  • The machine will stop automatically once the materials are finished. Also it has installed emergency



DPP-140E



Model

ALU ALU

ALU-PVC

Machine Body

Stainless Steel 304/316

Blanking frequency(times/min)

15-30

20-45

Adjustable pulling length

30-120mm

Blister Plate Size

Design According To Customers’ Requirements

Max Forming area and depth(mm)

140*110*12

140*110*15

Air compressor(self-prepared)

0.6-0.8Mpa  ≥0.4m3/min

Mould cooling

(Recycle water or circulating water consumption)

40-80 L/h

Power supply(Three phase)

380V/220V 50HZ 3KW



380V/220V 50HZ 5.5KW



Wrapper specification (mm)

Alu Alu Foil

150*(0.14-0.18)*(Φ400)

PVC

150*(0.15-0.4)*(Φ400)

Aluminum Foil:150*(0.02-0.15)*(Φ400)

Overall Dimension(L*W*H)

(including foundation)

2400*650*1450

Dimension of Each Part

1350*650*1250(front)

1050*650*1450(back)

Weight

About 800kg



Performance as Aluminum Aluminum blister packing machine



  • The machine adopt a special cold forming module to make Aluminum foil formed.
  • The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
  • Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
  • Mould and feeder can be designed according to customer ‘s request.
  • the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  • The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.



Performance as Aluminum PVC blister packing machine

  • The machine use heating board to make PVC’s temperature up to 100℃ and use compressed air to make PVC formed.
  • The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
  • Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
  • Mould and feeder can be designed according to customer ‘s request.
  • The machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  • The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.

High Packing Standard Small Automatic Aluminum Blister Packaging Machine

High Packing Standard Small Automatic Aluminum Blister Packaging Machine
