High Speed Double Alu Alu Blister Packing Machine Value Added Equipment

China High Speed Double Alu Alu Blister Packing Machine Value Added Equipment supplier
High Speed Double Alu Alu Blister Packing Machine Value Added Equipment supplier High Speed Double Alu Alu Blister Packing Machine Value Added Equipment supplier High Speed Double Alu Alu Blister Packing Machine Value Added Equipment supplier High Speed Double Alu Alu Blister Packing Machine Value Added Equipment supplier High Speed Double Alu Alu Blister Packing Machine Value Added Equipment supplier High Speed Double Alu Alu Blister Packing Machine Value Added Equipment supplier

Large Image :  High Speed Double Alu Alu Blister Packing Machine Value Added Equipment

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DPP-250E

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: packed in plastic bag and fixed in export wooden box
Delivery Time: 30 working days after received your payment.
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Product Name: Alu Alu Blister Packing Machine Output: Max.30 Cutting/min
Max. Forming Area And Depth: 250*120*12 Pulling: Step Motor Driving
Punch Pin: PTFE(High Temperature Resistant, Non Stick Coating) Detection System: Mechanical Detection Or Visual Inspection

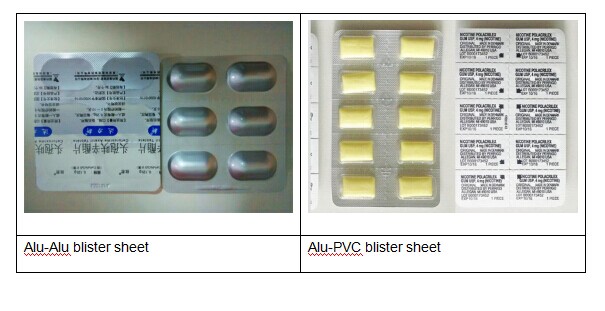

Used: Alu-PVC Blister And Alu-Alu Blister



High Speed Double Alu Alu Blister Packing Machine Value Added Equipment





This machine is suitable for pack capsules and tablets which request high packaging standard to protect its quality and extend expiration date. This machine combined with two function:aluminum foil cold forming blister and PVC thermal forming blister. The two functions transform by changing modules.



Description

  • Main motor adopts inverter speed controlling system.
  • It adopts newly designed double hopper feeding system with high precision optical control for
  • automatic
  • and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.
  • Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing
  •  and
  • The machine will stop automatically once the materials are finished. Also it has installed emergency



Performance as Aluminum Aluminum blister packing machine

  • The machine adopt a special cold forming module to make Aluminum foil formed.
  • The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
  • Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
  • Mould and feeder can be designed according to customer ‘s request.
  • the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  • The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.



Performance as Aluminum PVC blister packing machine

  • The machine use heating board to make PVC’s temperature up to 100℃ and use compressed air to make PVC formed.
  • The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
  • Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
  • Mould and feeder can be designed according to customer ‘s request.
  • The machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  • The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.





OVERALL SKETCH



High Speed Double Alu Alu Blister Packing Machine Value Added Equipment



1: PVC feeder  2: PVC transporting roller  3: Heating box 4: Forming mechanism(the material of  punch head  is PTFE)

5: Medicine feeder(The manual feeding without this station)

6: Touch-screen 7: PTP transporting roller

8: Heat-sealing mechanism 9: Trace-pressing mechanism

10: PTP feeding mechanism & scrap-collector 11: Tow mechanism

12: Blanking mechanism 13: Finished product output



Attention



When make ALU ALU product:

Turn off No.3 (Heating box),change the feeder to shaking type feeder and change molds(Forming up and

down molds, sealing up and down molds, blanking up and down molds)

When make ALU PVC product:    Turn on all of the stations.



High Speed Double Alu Alu Blister Packing Machine Value Added Equipment

PACKAGE

  • The machine will not be shaking in transport with wooden fixed.
  • The machine will not be affected with damp in transport with packed with PE plastic bags.
  • Easy shaking station will fixed with hard rope.
  • Long machine will packed separatly.
  • If there are strict requirements, chassis can use iron girders.

High Speed Double Alu Alu Blister Packing Machine Value Added Equipment
