Stable Performance Automatic Cartoner Machine For Health Care Product Pack

China Stable Performance Automatic Cartoner Machine For Health Care Product Pack supplier
Stable Performance Automatic Cartoner Machine For Health Care Product Pack supplier Stable Performance Automatic Cartoner Machine For Health Care Product Pack supplier Stable Performance Automatic Cartoner Machine For Health Care Product Pack supplier

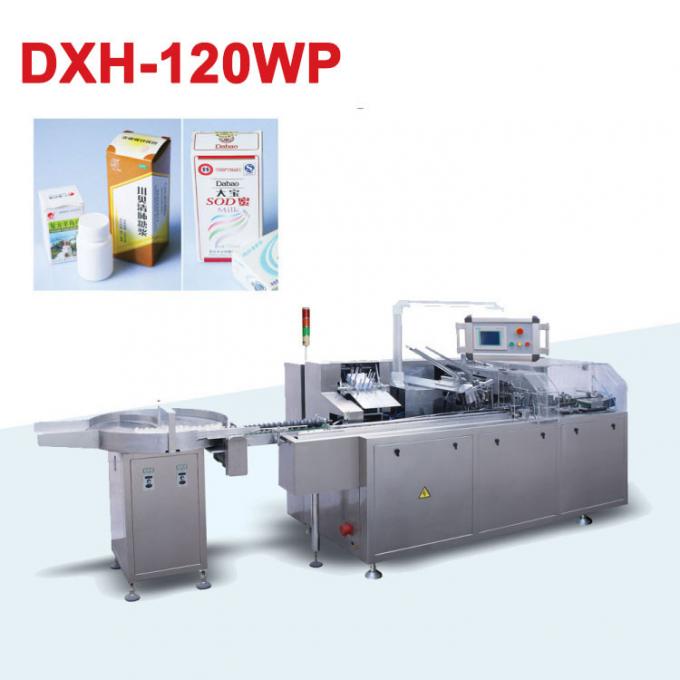

Large Image :  Stable Performance Automatic Cartoner Machine For Health Care Product Pack

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DXH-120WP

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: WOODEN BOX.
Delivery Time: 30 working days after received your payment.
Supply Ability: 10 Set per month
Contact Now
Detailed Product Description
Product Name: Small Bottle Cartoning Machine Output: Max.100 Boxes/min
Box Dimension Range: (50-200)mm*(20-80)mm*(14-45)mm Material Consist: Stainless Steel 304
Control: PLC Control Capacity Of Air Compressor: ≥0.5Mpa
Power Supply: 380V/220V 50HZ 0.75KW



Name: Stable Performance Automatic Cartoner Machine For Health Care Product



Instroduction:

  1. Widely applied. It can pack different sizes and specifics of tubes or similar objects.
  2. The working process include automatic leaflet folding inserting, carton opening, object inserting,batch number embossing and cartoning sealing.
  3. All working stations equipped electronic sensor for running status monitoring.





Performance and characteristic:

  • The machine works continuously with mechanical pushing objects into carton with smooth and reliable working situation.
  • The object pusher comes with alarming system while the objects are not at the right position, it ensures the good carton quality and safety in operation.
  • Continuous carton opening system with pulling style opening station makes machine working more stable and smoothly.
  • The machine adopts servo feeding system which makes the feeding more smoothly and stable.
  • The machine has the vacuum protection stopping system and automatic testing and stopping system for cover opening, to ensure human safety when operating.
  • It is easy and convenient to change and adjust the product size with hand wheel.
  • The speed is controlled by inverter while the whole system is controlled by PLC and operating by touch screen for easier and simpler production, all machine running status are displayed by double language.
  • The machine has the function of overloading protecting and failure diagnosis indication, and production of automatic shutdown system failure.



TECHNICAL PARAMETER



Max. Encasing speed

50-100 boxes/min

Carton

Quality requirement

250-350g/㎡(according to carton size)

Specification

(50-200)×(20-80)×(14-45)mm

Leaflet

Quality requirement

55-65g/㎡

Folded Leaflet Specification(1-4) Fold

(80-240)×(90-190)mm (L×W)

Compressed air

Pressure

≥0.5Mpa

Consumption

120-160L/min

Motor Power

220V 50HZ 0.75kw

Dimension

4200×1200×1600mm (L×W×H)

Net weight

1600kg







Stable Performance Automatic Cartoner Machine For Health Care Product Pack

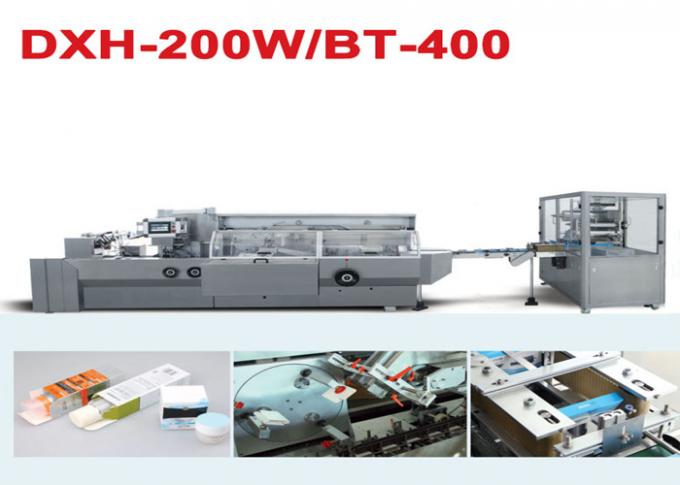

This machine can be connected with cellophane overwrapping machine to establish packaging production line.

Stable Performance Automatic Cartoner Machine For Health Care Product Pack



Package:



  1. The machine will not be shaking in transport with wooden fixed.
  2. The machine will not be affected with damp in transport with packed with PE plastic bags.
  3. Easy shaking station will fixed with hard rope.
  4. Long machine will packed separately.
  5. If there are strict requirements, chassis can use iron girders.





AFTER SERVICE:

  • For the big problem that you can not resolve by yourself, our engineer was available to go over seas for helping you to resolve the problem.
  • For small problems, we can take the video and pictures to guide you how to adjust and fix the machine. We have professional after service team which could help you to resolve the problem within 24 hours.
