New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment

China New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment supplier
New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment supplier New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment supplier New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment supplier New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment supplier New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment supplier

Large Image :  New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DXH-200W

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: WOODEN BOX.
Delivery Time: 30 working days after received your payment.
Supply Ability: 10 Set per month
Contact Now
Detailed Product Description
Product Name: DXH-200W Blister Box Packing Machine /Carton Packing Machine Output: Max.200 Boxes/min
Box Dimension Range: (55-220)mm*(20-100)mm*(14-70)mm Material Consist: Stainless Steel 304
Control: PLC Control Capacity Of Air Compressor: ≥0.6Mpa
Motor Power: 380V/220V 50HZ 1.5KW

New condition blister box packing machine price with high speed / carton box packing equipment(DXH-200W)



This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject box lacking of leaflet or product.





Performance and characteristics

  1. The machine works continuously with mechanical pushing objects into carton with smooth and reliable working situation.
  2. The object pusher comes with alarming system while the objects are not at the right position, it ensures the good carton quality and safety in operation.
  3. Continuous carton opening system with pulling style opening station makes machine working more stable and smoothly.
  4. The machine adopts servo feeding system which makes the feeding more smoothly and stable.
  5. The machine has the vacuum protection stopping system and automatic testing and stopping system for cover opening, to ensure human safety when operating.
  6. It is easy and convenient to change and adjust the product size with hand wheel.
  7. The speed is controlled by inverter while the whole system is controlled by PLC and operating by touch screen for easier and simpler production, all machine running status are displayed by double language.
  8. The machine has the function of overloading protecting and failure diagnosis indication, and production of automatic shutdown system failure.









TECHNICAL PARAMETER



Max. Encasing speed

50-200 boxes/min

Carton

Quality requirement

250-350g/㎡(according to carton size)

Specification

(55-220)×(20-100)×(14-70)mm

Leaflet

Quality requirement

55-70g/㎡

Folded Leaflet Specification(1-4) Fold

(80-240)×(90-190)mm (L×W)

Compressed air

Pressure

≥0.3Mpa

Consumption

120-160L/min

Main Motor Power

220V 50HZ 1.5kw

Dimension

4300×1440×1600mm (L×W×H)

Net weight

1500kg

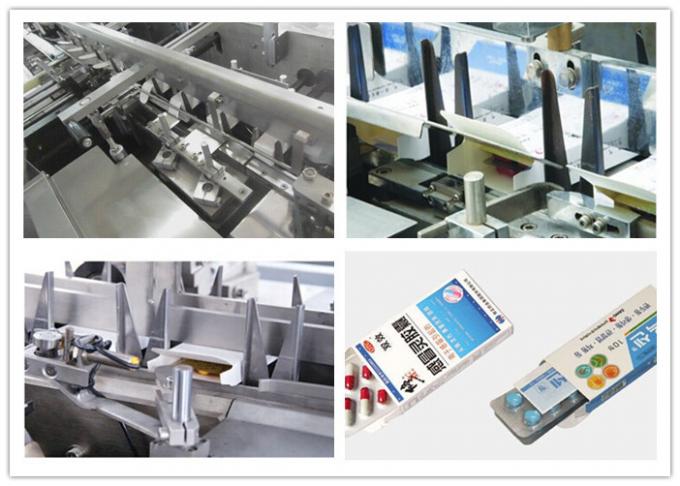

MACHINE DETAILS



New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment



Package:



  1. The machine will not be shaking in transport with wooden fixed.
  2. The machine will not be affected with damp in transport with packed with PE plastic bags.
  3. Easy shaking station will fixed with hard rope.
  4. Long machine will packed separately.
  5. If there are strict requirements, chassis can use iron girders.



New Condition High Speed Automatic Cartoning Machine Blister Packaging Equipment





AFTER SERVICE:





  • For the big problem that you can not resolve by yourself, our engineer was available to go over seas for helping you to resolve the problem.
  • For small problems, we can take the video and pictures to guide you how to adjust and fix the machine. We have professional after service team which could help you to resolve the problem within 24 hours.
