Penicillin bottle box packing machine Pharmaceutical blister packing machine

China Penicillin bottle box packing machine Pharmaceutical blister packing machine supplier
Penicillin bottle box packing machine Pharmaceutical blister packing machine supplier Penicillin bottle box packing machine Pharmaceutical blister packing machine supplier Penicillin bottle box packing machine Pharmaceutical blister packing machine supplier

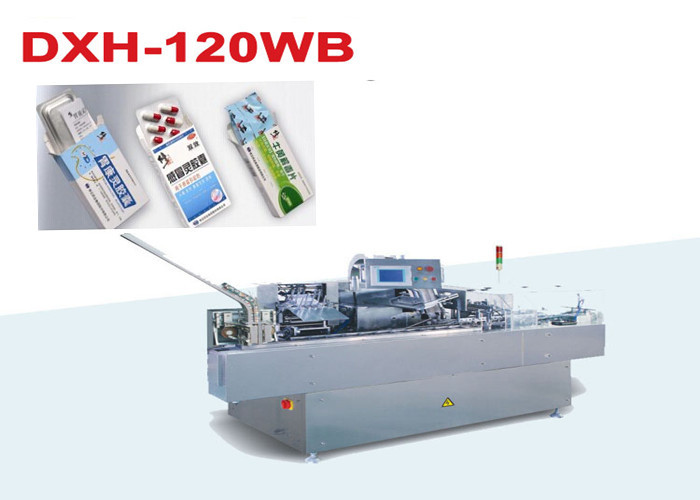

Large Image :  Penicillin bottle box packing machine Pharmaceutical blister packing machine

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DXH-120WB

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: WOODEN BOX.
Delivery Time: 50 working days after received your payment.
Supply Ability: 10 Set per month
Contact Now
Detailed Product Description
Product Name: Blister Cartoning Machine Output: Max.120 Boxes/min
Box Dimension Range: (55-200)mm*(20-80)mm*(14-45)mm Material Consist: Stainless Steel 304
Control: PLC Control Capacity Of Air Compressor: ≥0.5Mpa
Power Supply: 380V/220V 50HZ 0.75KW



Penicillin bottle box packing machine Pharmaceutical blister packing machine





Specifications



Max encasing speed

120box/min

Carton

Quality Requirement

250-350g/m2

Dimension Range (L×W×H)

(50-200) ×(20-80)  ×(14-45)mm

leaflet

Quality Requirement

55-65g/m2

Folded Leaflet  Specification

(80-240)X(90-190)mm

Folding Range

1-4 fold

Air Consumption

>0.5m3/min    120-160L/min

Motor Power

0.75kw   220V   50HZ

Machine  Dimension (L×W×H)

3100x1100x1600mm

Machine Net  Weight

About 1500kg



Description

  • It adopts PLC control and touch screen operating system with speed adjusted by inverter.
  • Main transmission system gets overloading protecting device
  • Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
  • The machine gets stable performance, easy changing different sizes of products
  • Detection and Rejection of cartons which gets no object fed or leaflet fed.
  • Servo motor feeding system is apply to feed different styles of blister plate.



Applications



The machine is suitable for packing different sizes and specifics of blister plate or similar objects with

automatic leaflet folding inserting, carton opening, object cartoning, batch number embossing and cartooning

 sealing (hot glue sealing is an optional for the machine).The machine can both work isolated and connect to blister packaging machine as production line.



Penicillin bottle box packing machine Pharmaceutical blister packing machine

Penicillin bottle box packing machine Pharmaceutical blister packing machine
