Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine

China Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine supplier
Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine supplier Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine supplier Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine supplier Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine supplier

Large Image :  Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine

Product Details:

Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPP-140/250/350

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: 1.The machine will not be shaking in transport with wooden fixed. 2.The machine will not be affected with damp in transport with packed with PE plastic bags. 3.Easy shaking station will fixed with hard rope. 4.Long machine will packed separately. 5.If ther
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Name: Blister Packing Machine Capacity: Max.45 Cuttings/min
Max. Forming Area And Depth: 250*120*15mm(30mm Need Customersized) Pulling: Step Motor Pulling Or Servo Motor Driving
Warranty: 1 Year Machine Color: Silver
Volume: About 4CBM Use For: Capsule,tablets,etc
Steel Word: According To Demands Power: 280/220V Three Phase



Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine



The dimension is small and the stroke length is adjustable. It suitable for aluminum plastic package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, chewing gum,milk tablet, mini metal etc.



Description



1. Use touch screen,PLC

2. Use servo motor pulling

3. Cylinder hot sealing,extend machine’s life

4. Automatic feeder



performance and characteristic



  • The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on.
  • It is the ideal packing equipment with convenience operation, full purpose function. The product passed the CE certification and meet the GMP requirement.
  • Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
  • Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
  • With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
  • Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, paste and syringe etc.
  • The machine can be used with general feeder, the disc feeder and special feeder.



TECHNICAL PARAMETER

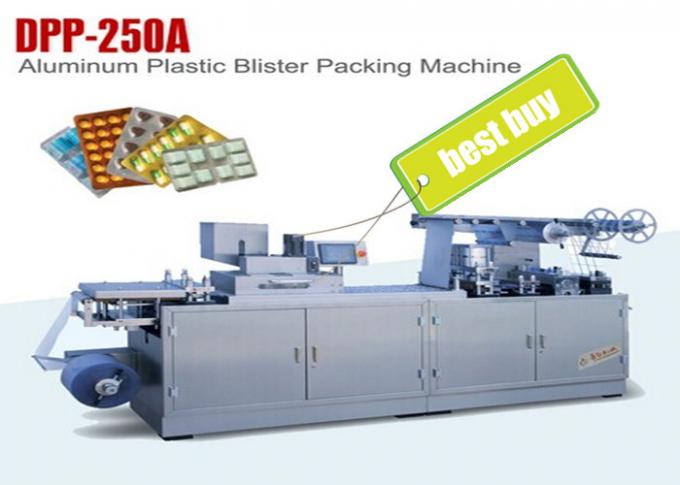

Item Model DPP-250A
Cutting Frequency(ideal sizes:80*57mm) 15-45 cutting/min
Max. Forming Area and Depth 250×120×15
Adjustable Scope of Travel(mm) 30-130mm
Packaging material(I.D.Φ75) PVC(mm) (0.15-0.4)×260×(Φ400)
PTP(mm) (0.02-0.15)×260×(Φ400)
Paper(mm)

(50-100)g/㎡

×260×(Φ400)

Power 380V 50Hz 8kw
Air compression(self-prepared) 0.6-0.8Mpa≥0.45m³/min
Recycle water or circulating water consumption 40-80L/h
Overall Dimension(L*W*H)(including foundation) 2900×750×1600
Dimension of Each Part 1500×750×1600(front)
1400×750×1450(back)
Weight About 1200kg

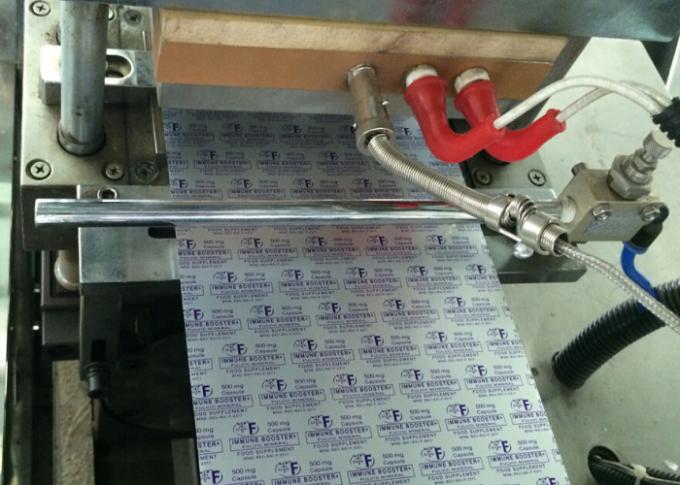

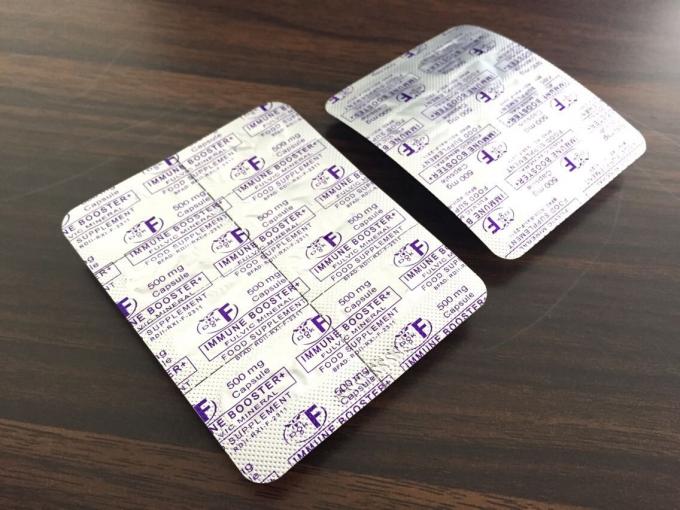

PRODUCT AND MACHINE




Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing MachineFull Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine

Full Automatic Blister Forming Flat Type Aluminum Plastic Blister Packing Machine



WARRANTY

  1. Technical Support(24 hours on line support by emails, skype, MSN, mobile).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.
