Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction

China Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction supplier
Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction supplier Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction supplier Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction supplier Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction supplier Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction supplier

Large Image :  Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction

Product Details:

Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPP-250F

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: 10000usd-3000usd/set
Packaging Details: Wooden Box
Delivery Time: 35 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 5 Sets per month
Contact Now
Detailed Product Description
Product Name: High Speed Blister Packing Machine Output: Max.30cutting/min
Max. Forming Area And Depth: 250*120*15 Mould Cooling: 60-100L/h
Weight: 1700kg Capacity Of Air Compressor: 0.6-0.8Mpa ≥0.5m3/min


Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction


Detailed Product Description



This high sealed tropical packing machine comes with integrating mechanism, electricity and pneumatic system under PLC control and touch screen operation. The machine is suitable for blister packing with Aluminum plastic and aluminum plastic aluminum.




Description



1. Travel scope can be adjusted.

2. Alu Alu Blister Packaging is available for this machine.

3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

7. Stepping motor Pulling Material more accuracy and easy adjusting

8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.



Applications



· Currently the fastest Blister Machine in China; it is the culmination of over 20 years professional experience.
· The machine accommodates forming material reels of up to 600mm in diameter and a waste material trimming cutter, which allow production runs of approximately 90 minutes therefore reducing the material replacement frequency.
· Equipped with integrated forming material splicer to enhance efficiency.
· Automatic format positioning system achieves straightforward format changeover.
· Window frame type no-waste-trimming cutter saves packaging materials.
· Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
· Can be connected to subsequent machines, e.g. High-Speed Cartoners, to form a whole pharmaceutical packaging line.



Specifications



Double Function ALU-PLASTIC-ALU ALU-PLASTIC
Cutting Frequency(ideal sizes:80*57mm) 15-30 cutting/min 20-45 cutting/min
Max. Forming Area and Depth 250×120×15mm 250×120×15mm
Adjustable Scope of Travel(mm) 30-120mm 30-120mm
Packaging material(I.D.Φ75) PVC(mm) (0.15-0.4)×260×(Φ400) (0.15-0.4)×260×(Φ400)
PTP(mm) (0.02-0.15)×260×(Φ250) (0.02-0.15)×260×(Φ250)
Alu Alu Foil (0.10-0.12)×260×(Φ400)
Paper(mm)

(50-100)g/㎡

×260×(Φ300)

Power 380V 50Hz 11.5kw 380V 50Hz 8.5kw
Air compression(self-prepared)

0.6-0.8Mpa≥0.5m³/min



Recycle water or circulating water consumption

60-100L/h



Overall Dimension(L*W*H)(including foundation)

4450×800×1600



Dimension of Each Part

1400×800×1600(front)



1650×800×1450(middle)



1400×800×1450(back)



Weight About 1700kg

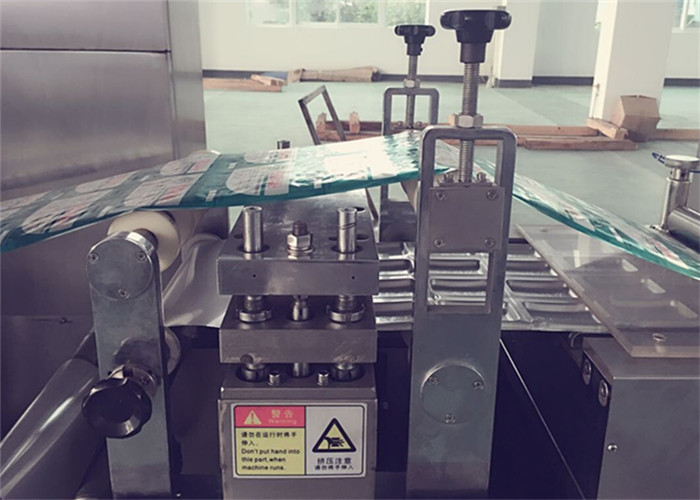

Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction

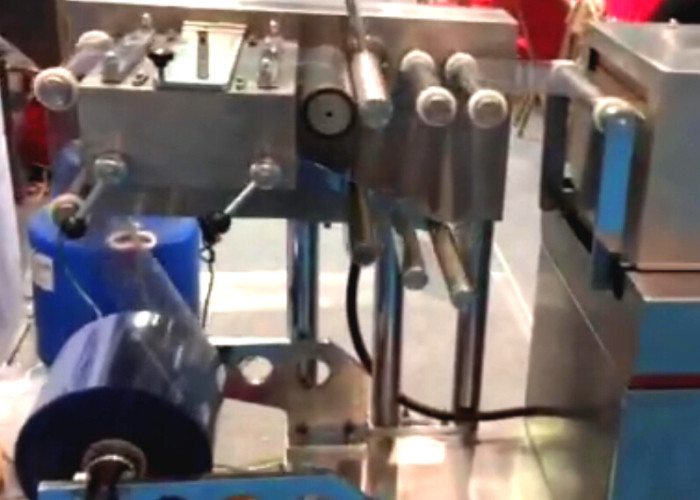

Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction





Package



Tropical Tablet / Capsule Blister Packing Machine Alu Alu Blister Machine Multifunction
