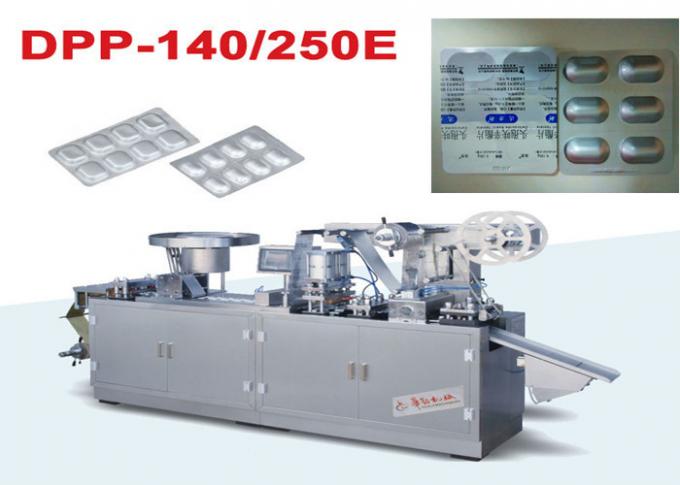

DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant

China DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant supplier
DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant supplier DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant supplier DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant supplier

Large Image :  DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DPP-140E

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: WOODEN BOX.
Delivery Time: 30 working days after received your payment.
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Product Name: Alu Alu Blister Packing Machine Output: Max.30 Cutting/minute
Max. Forming Area And Depth: 140mm*110mm*12mm Pulling: Step Motor Pulling
Punch Pin: PTFE(High Temperature Resistant, Non Stick Coating) Detection System: Mechanical Or Visual Detection
Plate Correspondence: PRC System Used: Alu-PVC & Alu-Alu
Warranty: 1year


DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for small Pharmacy Plant


Introduction:

This machine is designed in strict compliance with GMP standard, advanced functions, easy to operated,
high output.


Packaging Features:

protect the material from steam or dust
improve product packing degree,
increase the additional value.


Description:

1. Adopts SIMENS PLC control with touch screen displayed in Chinese and English, Frequency inverter for
speed control,servo traction,which can ensure the length of blister traction adjustable within the range.
2.The machine station module type design of level frame,good sight,safe and convenient easy operation.
3. Thermal with contact type,positive press formed,air cushion thermal seal upper and lower net,photo register
 make your product package better.
4.Detachable design make the blister packing machine can be easily carried and installed according to the
requirement of user.


DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant

Technical Parameter:


Model DPP-140EALU-ALUALU-PVC
Cutting Frequency(ideal sizes:80*57mm)15-30 cutting/min20-45 cutting/min
Max. Forming Area and Depth140×110×12mm140×110×15mm
Adjustable Scope of Travel(mm)30-120mm30-120mm
Packaging material(I.D.Φ75)PVC(mm) (0.15-0.4)×150×(Φ350)
PTP(mm)(0.02-0.15)×150×(Φ250)(0.02-0.15)×150×(Φ250)
Alu Alu Foil(0.14-0.18)×150×(Φ350)
Paper(mm)

(50-100)g/㎡
×150×(Φ300)

Power380V 50Hz 3kw380V 50Hz 5.5kw
Air compression(self-prepared)0.6-0.8Mpa≥0.4m³/min0.6-0.8Mpa≥0.4m³/min
Recycle water or circulating water consumption40-80L/h40-80L/h
Overall Dimension(L*W*H)(including foundation)2400×650×14502400×650×1450
Dimension of Each Part1350×650×1450(front)1350×650×1450(front)
1050×650×1450(back)1050×650×1450(back)
WeightAbout 800kgAbout 800kg


DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant
DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for Small Pharmceutical Plant

Machine eletric Parts List


NameTypeBrandNumberNote
Touch screenMT506lv45wvweinview(Taiwan)1
PLC motorDVP32ES00T2DELTA1
Temperature controllerDVP4848V1DELTA3
TransducerVFD015B43ADELTA1
Stepping motor110BYG350A(200NM)Wuxi tonghui1
Stepping driveHB-B3CWuxi tonghui1
EncoderZLB2.806-G-500BMZDDT(Taiwan)1
Air Circuit breakerBKN-3P/32ALG1
Air circuit breakerBKN-1P/16ALG1
Air circuit breakerBKN-1P/10ALG3
Air circuit breakerBKN-1P/3ALG1
A.C contactorGMC-32LG(AC220v)1
relayMY2NTOMRON(DC24v)1
Approach switchTL-Q5MC1Bardelli2
Delay approach switchJ6-D7NKBardelli3
Urgent stop switchZB2-BS54CBaredelli1
Power switch110/220Vmingwei1
ThermocoupleModel K 3mMeigeer3
SSVRAC250V/25AMeigeer
Switch power adapterS-30W 124-5V
Solid state relay25DAOMRON3AC 220V
Optical testingE32-D32OMRONUser need
