DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment

China DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment supplier
DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment supplier DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment supplier DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment supplier DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment supplier DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment supplier

Large Image :  DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment

Product Details:

Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPP-160F

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 5 Set per month
Contact Now
Detailed Product Description
Product Name: ALU PVC ALU BLISTER PACKING EQUIPMENT Output: Max.30cutting/min
Max. Forming Area And Depth: 150*110*15 Control: PLC Control
Plate Correspondence: PRC System Weight: 1200kg

DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment





Applications

Tropical Blister Packing Machine is a kind of Environmental Blister Packing Machine designed and produced by our company. The machine can be disassembled by three parts for convenient transportation purpose. It comes with integrating mechanism, electricity and pneumatic system under PLC control and Touch screen operation includes automatic preheating, compressed air blow forming, feeding, detection system, PRC System, first sealing station, batch number embossing, tropical foil forming, second sealing station, perforation station, servo pulling system, cutting station, rejection system and wasted material rewinding station, etc.

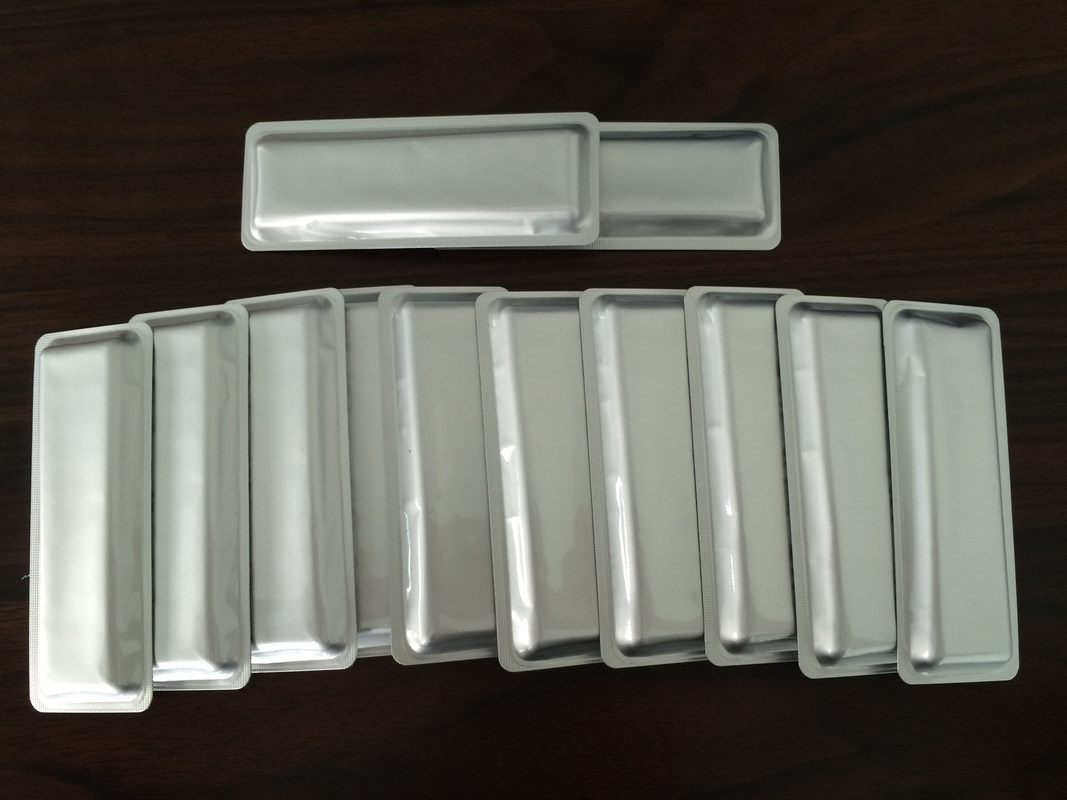

The machine suitable for blister packing with Alu-Plastic, Alu-Alu and Alu-Plastic-Alu.



Specifications



Model

ALU-Plastic-ALU

ALU ALU

ALU-PVC

Machine Body

Stainless Steel 304 /316(medicinal contact can be selected SS3016)

Blanking frequency(times/min)

(Standard size 57*80)

12-30

15-30

20-45

Adjustable pulling length

30-120mm





Max Forming area and depth(mm)

160*110*15

160*110*13

160*110*15

Power supply(Three phase)



380V/220V 50HZ 7KW

380V/220V 50HZ 4.5KW

380V/220V 50HZ 5.5KW

Packaging Material (mm)

(I.D.Φ75mm)

Tropical Foil

160*(0.1-0.12)*(Φ400)

PVC

160*(0.15-0.4)*(Φ400)

Alu Alu Foil

160*(0.14-0.18)*(Φ400)

PVC

160*(0.15-0.4)*(Φ400)

Blister Foil: 160*(0.02-0.15)*(Φ250)

Air compressor

0.6-0.8Mpa  ≥0.45m3/min (self-prepared)

Mould cooling

(Recycle water or circulating water consumption) 40-80 L/h

Overall Dimension(L*W*H)

(including foundation)

3660*700*1500

Dimension of Each Part

1200*700*1500(front)

1460*700*1400(middle)

1000*700*1400(back)

Weight

About 1200kg



Main feature

1). Adopts the elements of 250 blister packing machine, machine tool track type machine
basis, ease of adjusting, and the mould position can be adjusted and accurately.

2). It adopt body division machanism to avoid inconvenience of transfer due to the length
of the bofy 1.8 m by mounting up the forming and sealinassmbly.

3) This machine use servo double drive strucyure, it can avoid synchronized bubble break
cause by sudden machine stop.It also can conveniently realize photocell register function,
and servo air clip clip drive function.At the meanwhile, it also fastens the adjustment caused during mould change.Tith this strecture, you can also set the dive distance on human-machine interface.

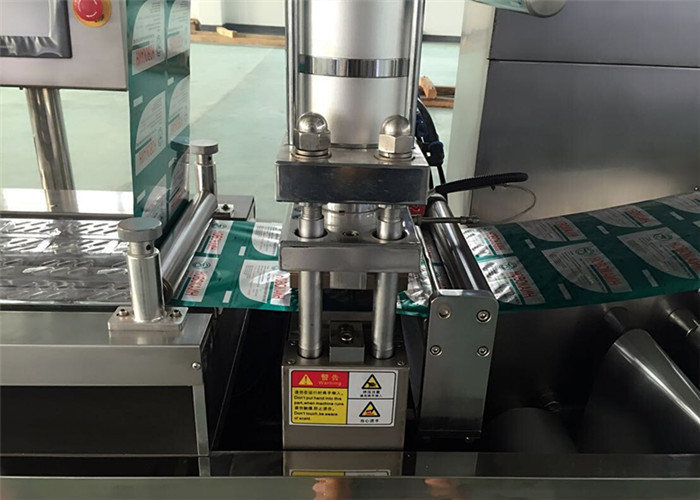

DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment



DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment



Package



DPP-160F SS304 Alu PVC Alu Blister Packing Machine Environmental Friendly Equipment
