High Capacity Flat Type Alu PVC Capsule Blister Packing Machine

China High Capacity Flat Type Alu PVC Capsule Blister Packing Machine supplier
High Capacity Flat Type Alu PVC Capsule Blister Packing Machine supplier High Capacity Flat Type Alu PVC Capsule Blister Packing Machine supplier High Capacity Flat Type Alu PVC Capsule Blister Packing Machine supplier High Capacity Flat Type Alu PVC Capsule Blister Packing Machine supplier High Capacity Flat Type Alu PVC Capsule Blister Packing Machine supplier

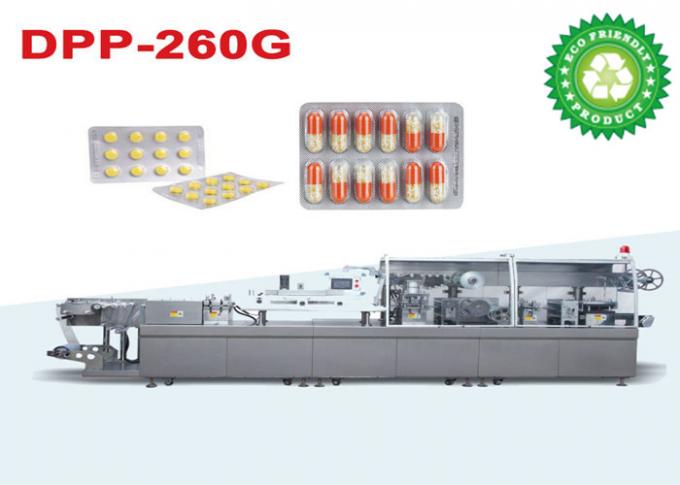

Large Image :  High Capacity Flat Type Alu PVC Capsule Blister Packing Machine

Product Details:

Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPP-260G

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Product Name: High Speed Blister Packing Machine Output: Max.100cutting/min
Max. Forming Area And Depth: 250*200*20 Material Consist: SS304/316
Control: PLC Control Plate Correspondence: PRC (print Register Control) System
Pulling Motor: Double Servo Motor Pulling



Name:High Capacity Flat Type Alu PVC Capsule Blister Packing Machine





Description

  • The machine Cutting Frequency:100 cutting/min. 1920000 capsules/each working shift(10 capsules/per board:8 hrs/each working shift) high productivity, low energy consumption, saves fund and decreases the packing cost
  • Currently the fastest Blister Machine in China; it is the culmination of over 20 years professional experience.
  • The machine accommodates forming material reels of up to 400mm in diameter and a waste material trimming cutter, which allow production runs of approximately 90 minutes therefore reducing the material replacement frequency.
  • Equipped with integrated forming material splicer to enhance efficiency.
  • Automatic format positioning system achieves straightforward format changeover.
  • Window frame type no-waste-trimming cutter saves packaging materials.
  • Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
  • Can be connected to subsequent machines, e.g. High-Speed Cartoners, to form a whole pharmaceutical packaging line.



FEATURES



  • Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel, and the bliser packing machine has staff gauge, easy to adjust and exact orientation.



  • Manipulator towing adopted culms double pendulum device, increased traction adjustable scope of the itinerary (it can get to 180mm), which can fit for medicine-card packaging of different sizes. The blister packing machine can registration heating, positive forming, up and down moiré, air cylinder heating sealing, automatic feeding, automatic lot number printing, automatic cutting die, easy to operate and credible running.



  • Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could collocate exclusive Automatic Feeder. The blister packing machine could fit for the packaging of ampoule, needle, Xilin Bottle, big honey pill, medicine machine and some special shape etc.



  • Main transmission part adopts parallel axis and bevel wheel speed reducer, forming dies and hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change dies and material saving.



  • Detachable design make the blister packing machine can be easily carried and installed according to the requirement of user.


SPECIFICATIONS



Item/Model

DPP-260G

Punching frequency
(Standard size 57×80)

20-100cutting/min

Max. Forming Area and Depth(mm)

240×200×20mm

Adjustable Pulling Length(mm)

30-220mm

Blister plate size

Design according to customers’ requirements

Packaging material(I.D.Φ75)

Alu-Alu

(0.14-0.16)×260×(Φ400)mm

PTP

(0.02-0.15)×260×(Φ250)mm

Paper

(50-100)g/㎡×260×(Φ300)mm

Power (Three phase)

380V 50Hz 4.5kw

Air compressor(self-prepared)

0.6~0.8Mpa≥0.25m³/min

Mould cooling

Recycle water or circulating water consumption:

60-100L/h

Dimension(L×W×H)(mm)

5600×900×1750mm³(Including foundation)

Dimension for each part(mm)

2300×720×1600mm³(front)

1500×900×1750mm³(middle)

1800×900×1750mm³(back)

Weight

About 2200KG



High Capacity Flat Type Alu PVC Capsule Blister Packing Machine

High Capacity Flat Type Alu PVC Capsule Blister Packing Machine



PACKAGE

High Capacity Flat Type Alu PVC Capsule Blister Packing Machine
